Kytola Oval Gear Flow Meter Model SRx

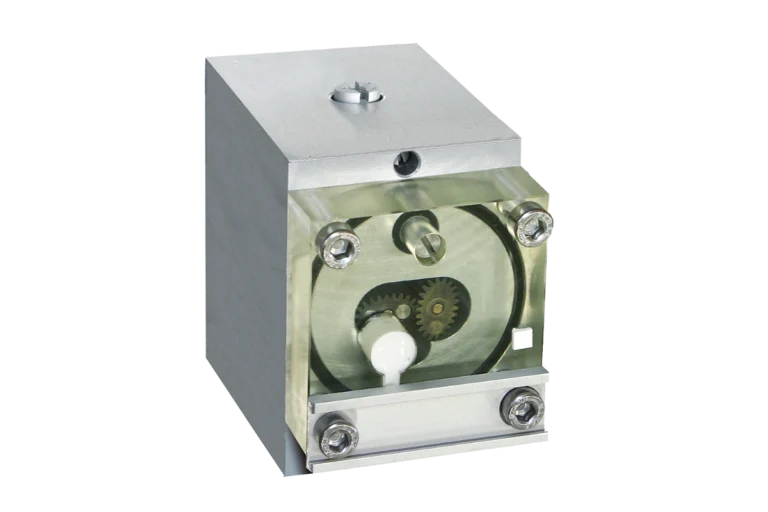

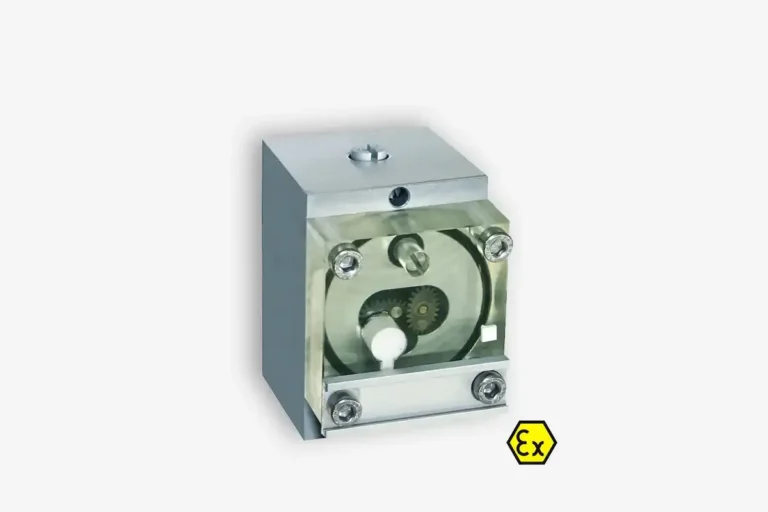

The Kytola Model SRx flow meter is an oval gear, positive displacement meter, designed for accurately measuring the flow of lubrication oil, regardless of its temperature or viscosity. The transparent cover makes it easy to identify consistent flow, and the unit features bypass valves for “on the run” service.
Alternative products in a similar style include the Model SR and Model SRx-x.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
| SR-1 | SR-2.5 | SR-6 | ||||||
|---|---|---|---|---|---|---|---|---|
| Output (pulses/l) | 2100 | 1062 | 290 | |||||
| Viscosity range | 30 – 1000 cSt | |||||||
| Body / cover material | Aluminium / Polyamide | |||||||
| Sensor | Kytola coil or Namur; DIN 19234 | |||||||
| Valve spindle | AISI 316 | |||||||
| Seals | Viton® | |||||||
| Gears | Composite polymer | |||||||
| Connection | ½” | ½” | ½” | |||||
| Weight | 0.6kg | 0.6kg | 0.6kg | |||||
| Max. pressure | 10 or 20 bar* | |||||||
| Max. temperature | +80°C | |||||||
| Accuracy | ±5% of reading | |||||||
