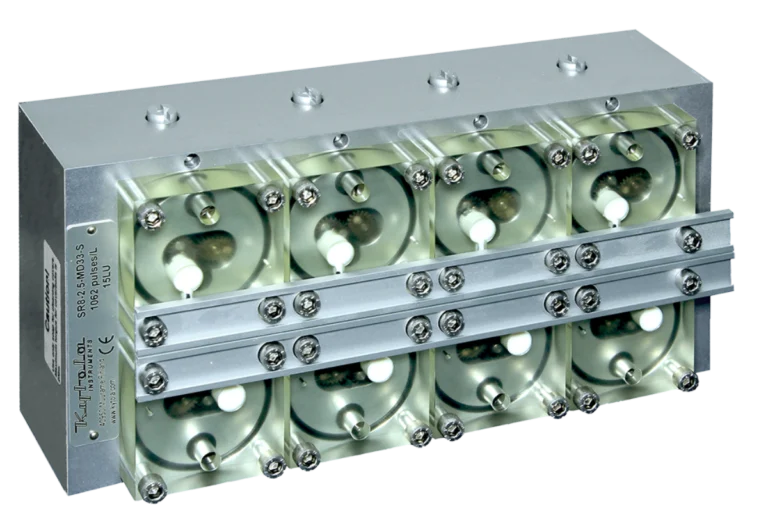

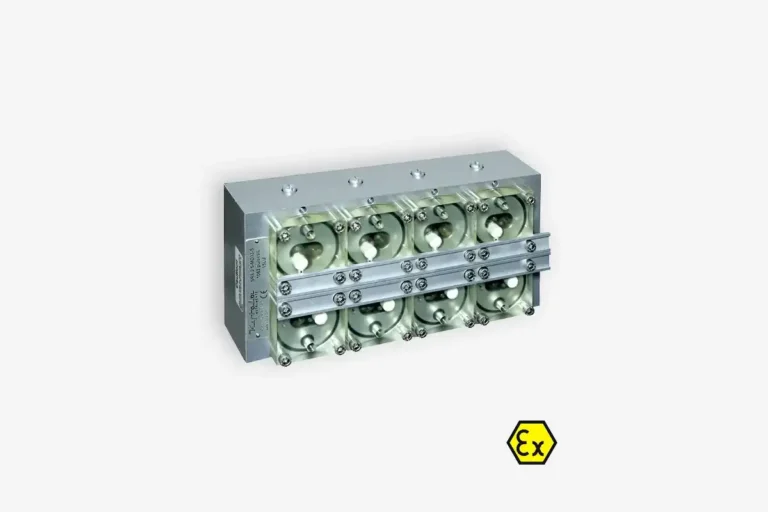

Kytola Oval Gear Flow Meter Model SRx-x
The Model SRx-x flow meter is a multi-channel instrument designed for demanding industrial applications. As a positive displacement flow meter, the Model SRx-x can be reliably used to monitor the flow of oil regardless of changes in temperature or viscosity. Typical applications include process control and the monitoring of industrial lubrication oils.
The unit features a transparent panel which provides a fast way to check the flow, and versions are available in ATEX materials – call us for more details. For similar products, please see Model SR and Model SRx.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
| SRx-1 | SRx-2.5 | SRx-6 | ||||||
|---|---|---|---|---|---|---|---|---|
| Output (pulses/l) | 2100 | 1062 | 290 | |||||
| Viscosity range | 30 – 1000 cSt | |||||||
| Body / cover material | Aluminium / Polyamide | |||||||
| Sensor | Kytola coil or Namur; DIN 19234 | |||||||
| Valve spindle | AISI 316 | |||||||
| Seals | Viton® | |||||||
| Gears | Composite polymer | |||||||
| Connection | ½” | ½” | ½” | |||||
| Weight | SR4: 2.5kg / SR6: 3.5kg / SR8: 4.5kg | |||||||
| Max. pressure | 10 or 20 bar* | |||||||
| Max. temperature | +80°C | |||||||
| Accuracy | ±5% of reading | |||||||
