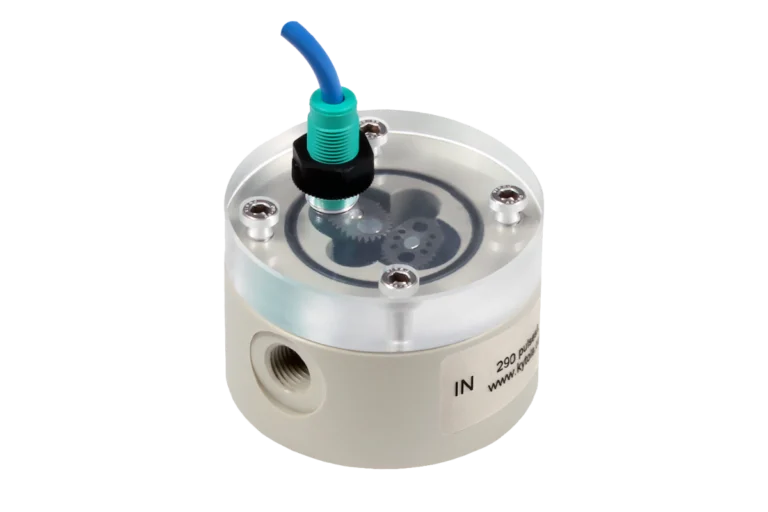

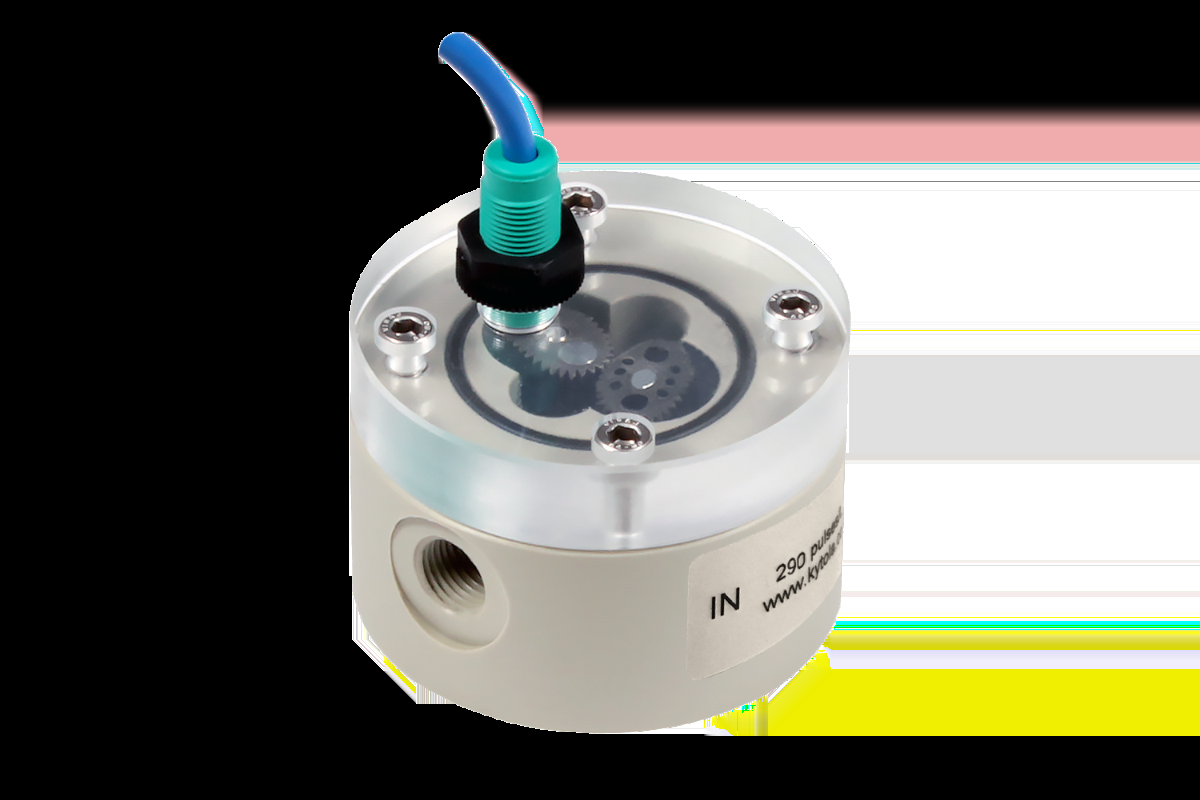

Kytola Oval Gear Flow Meter Model 6210
Designed to monitor corrosive liquids, the Model 6210 oval gear flow meter by Kytola is ideal for chemical dosing applications and industrial process control. As a positive displacement flow meter, the Model 6210 will reliably and accurately show the correct rate of flow despite changes in liquid viscosity and temperature.
An alternative, ATEX construction (II 2GD c TX) is available for safe use in explosive environments. Please speak to our team for details.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
6210-1- | 6210-2- | 6210-4- | 6210-10- | 6210-20- | 6210-30- | |||
---|---|---|---|---|---|---|---|---|
Output (pulses/l) | 820 | 1062 | 290 | 126.8 | 75.8 | 49.8 | ||
Viscosity range | 30 – 1000 cSt | |||||||
Body / cover material | PVDF / PVC | |||||||
Sensor | Namur; DIN 19234 (other types of sensor available as special construction) | |||||||
Seals | Hastelloy C | |||||||
Gears | Viton® or EPDM* | |||||||
Connection | ¼” | ¼” | ¼” | ¾” | ¾” | ¾” | ||
Weight | 330g | 350g | 360g | 930g | 1.0kg | 1.2kg | ||
Max. pressure | 10 bar | |||||||
Max. temperature | +80°C with PVDF body or +40°C with PVC body |
