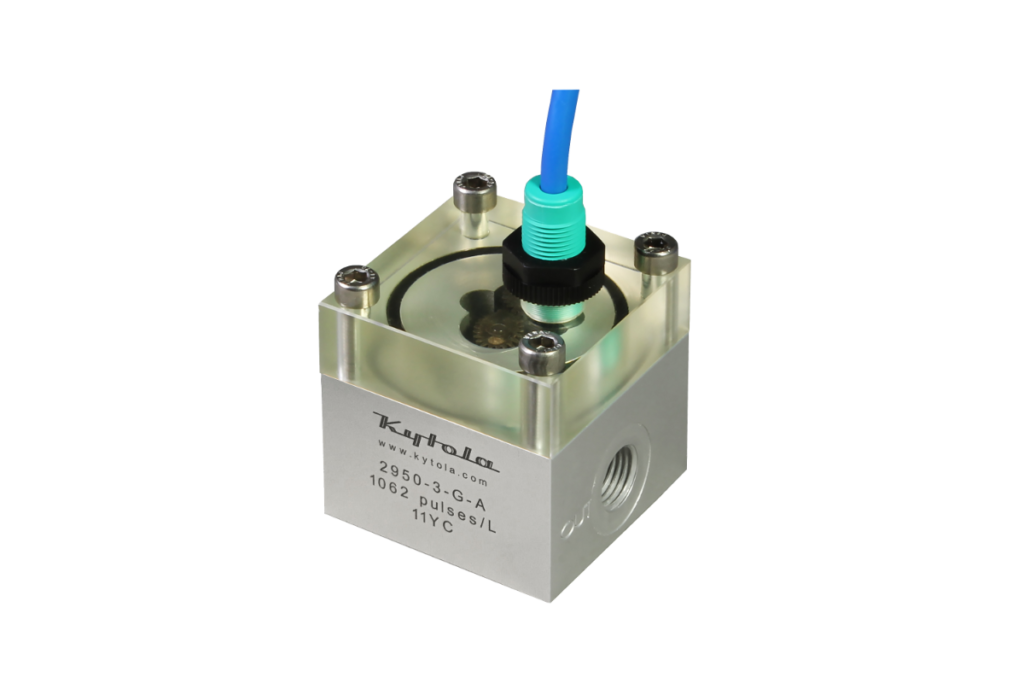

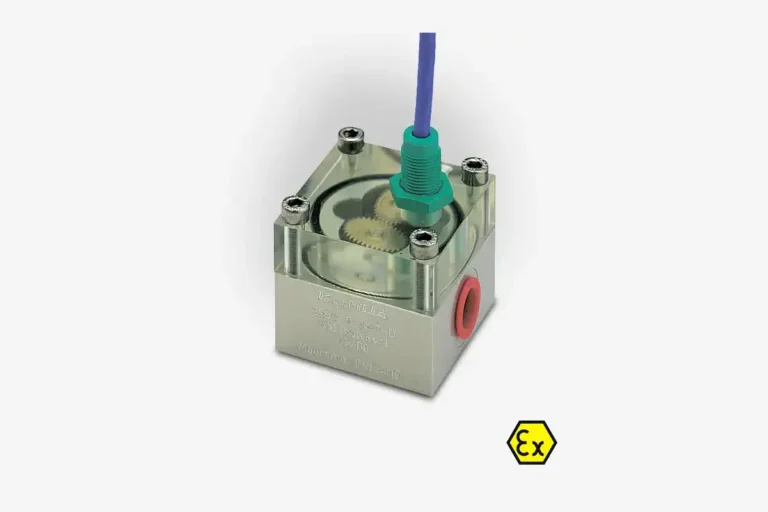

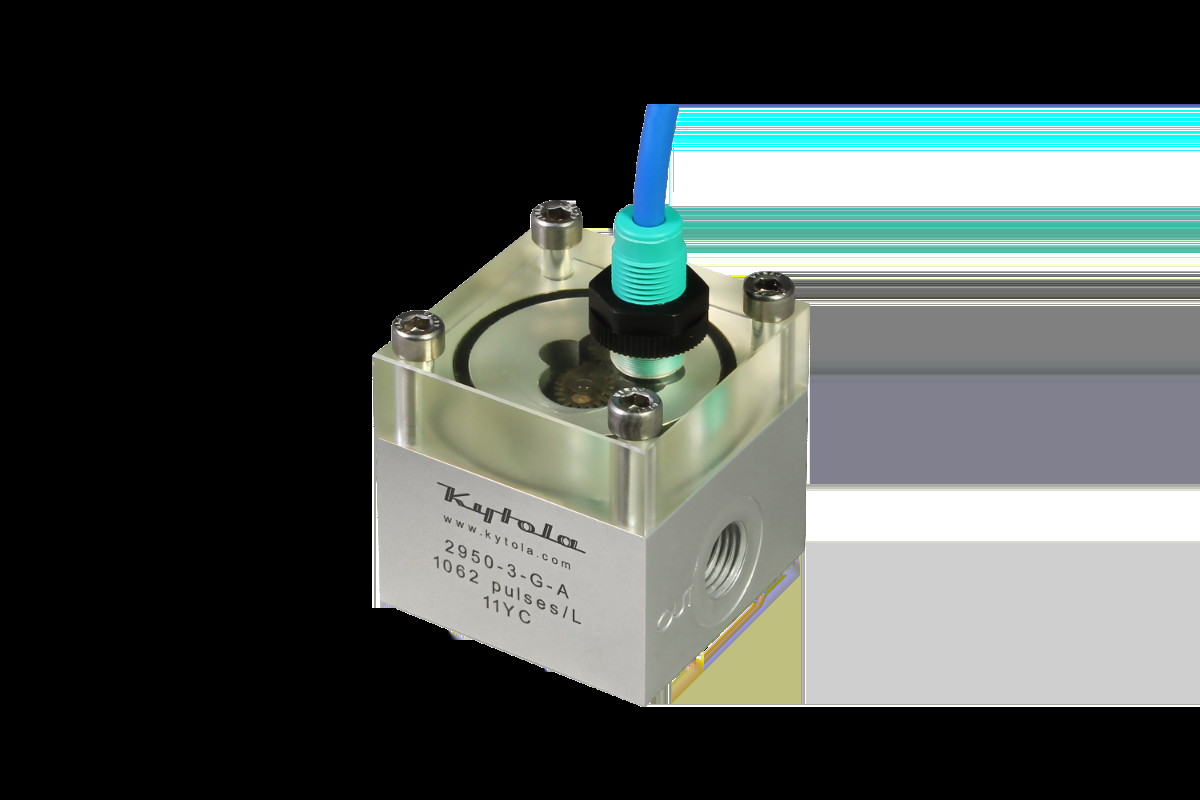

Kytola Oval Gear Flow Meter Model 2950
The Model 2950 meter by Kytola is a positive displacement flow meter, designed to always show the correct flow rate despite changes in oil viscosity. Two elliptical gears push the flow around the meter and a coil sensor or inductive proximity switch measures the rotation and sends a pulse signal. This signal can be connected to automation systems, counters, indicators or similar equipment.
The Model 2950 is commonly used in lubricant monitoring and process control.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
Technical Spec
| 2950-1- | 2950-2.5- | 2950-5- | 2950-10- | 2950-20- | 2950-30- | 2950-60- | 2950-100- | |
|---|---|---|---|---|---|---|---|---|
| Output (pulses/l) | 820 | 1062 | 290 | 126.8 | 75.8 | 49.8 | 22.4 | 12.4 |
| Viscosity range | 30 – 1000 cSt | |||||||
| Body / cover material | Aluminium / Polyamide | |||||||
| Sensor | Namur; DIN 19234 (other types of sensor available as special construction) | |||||||
| Seals | Viton® | |||||||
| Gears | Composite polymer or brass | |||||||
| Connection | ¼” | ¼” | ¼” | ¾” | ¾” | ¾” | 1″ | 1 ½” |
| Weight | 265g | 255g | 280g | 1.1kg | 1.1kg | 1.5kg | 3.4kg | 12kg |
| Max. pressure | 10 bar | |||||||
| Max. temperature | +80°C | |||||||
| Accuracy | ±5% of reading | |||||||
