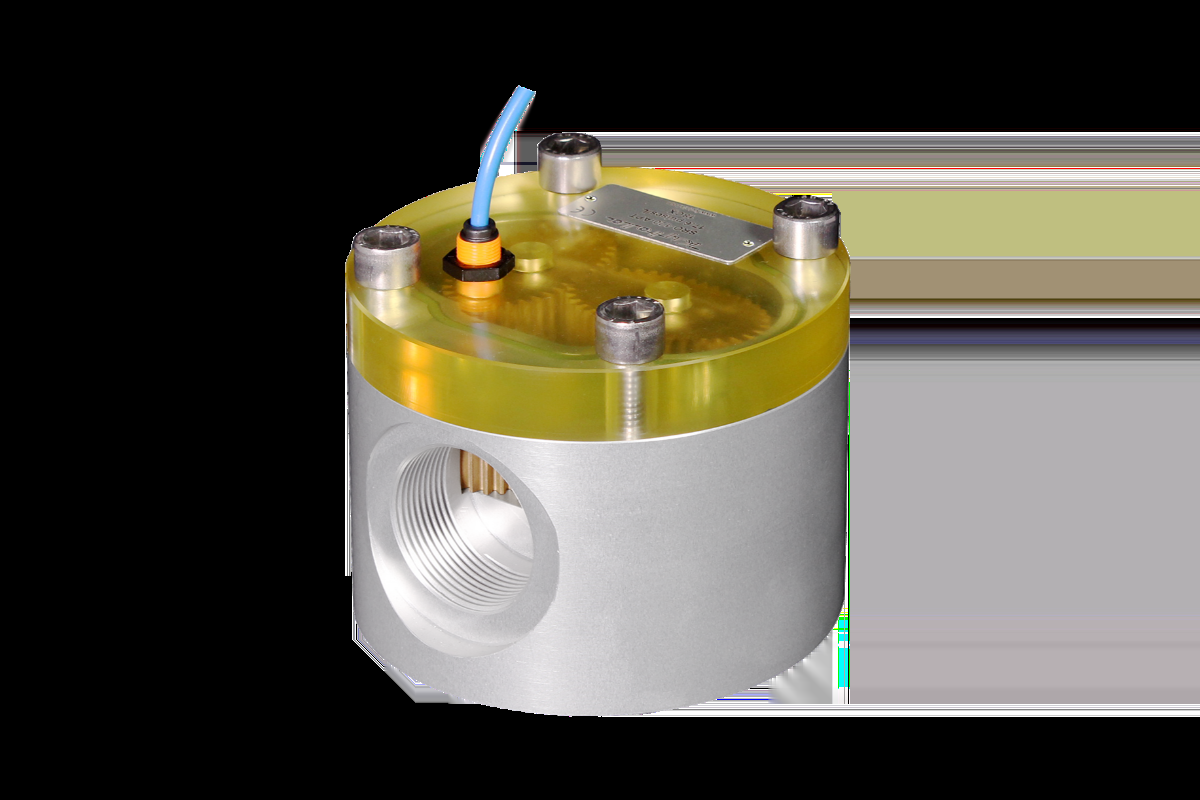

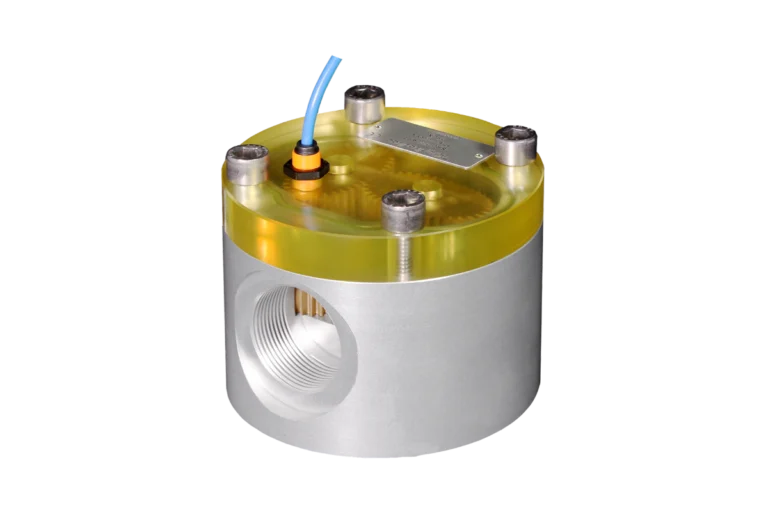

Kytola Oval Gear Flow Meter Model SRO
The Kytola Model SRO is a positive displacement flow meter, designed to give an accurate reading regardless of changes in the temperature or viscosity of the oil or lubricant. The robust construction is suitable for most industrial process control applications, and the unit features a transparent cover so that indication of flow can easily be identified.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
| SRO-120 | SRO-200 | |||||||
|---|---|---|---|---|---|---|---|---|
| Output (pulses/l) | 17.6 | 8.4 | ||||||
| Viscosity range | 30 – 1000 cSt | |||||||
| Body / cover material | Aluminium / Trogamid-T | |||||||
| Gears | Brass | |||||||
| Sensor | Namur; DIN 19234 (other types of sensor available as special construction) | |||||||
| Seals | Viton® | |||||||
| Connection | ½” | ½” | ||||||
| Weight | 4kg | 5kg | ||||||
| Max. pressure | 10 or 20 bar* | |||||||
| Max. temperature | +80°C | |||||||
| Accuracy | ±5% of reading | |||||||
