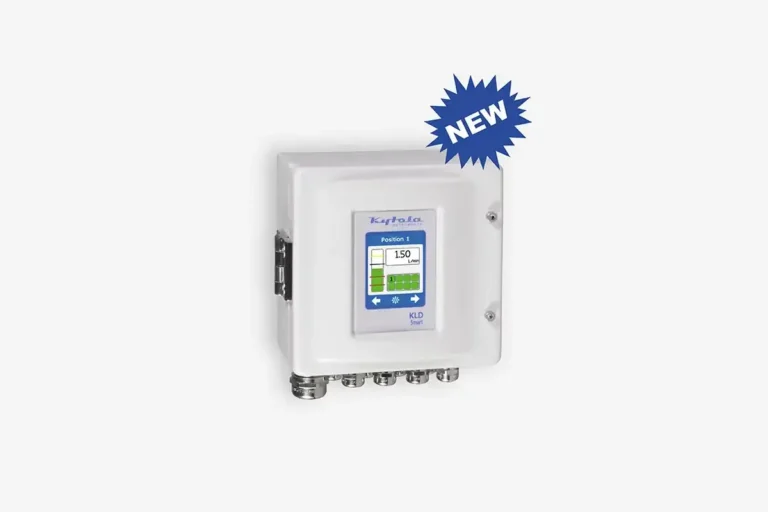

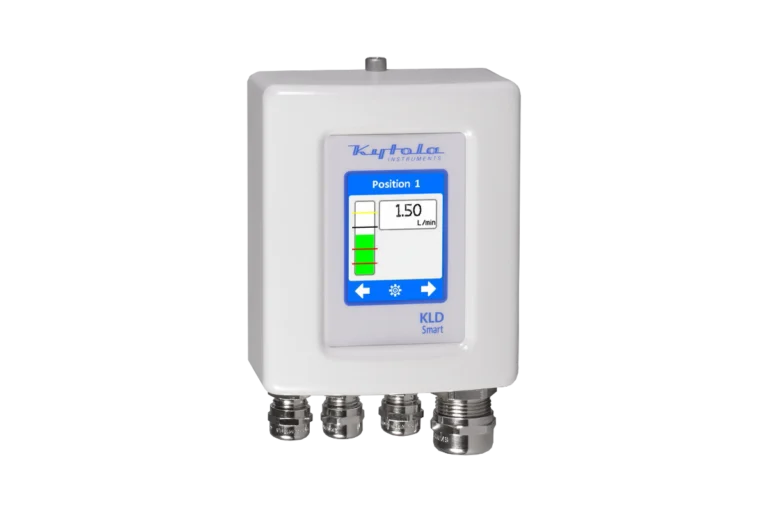

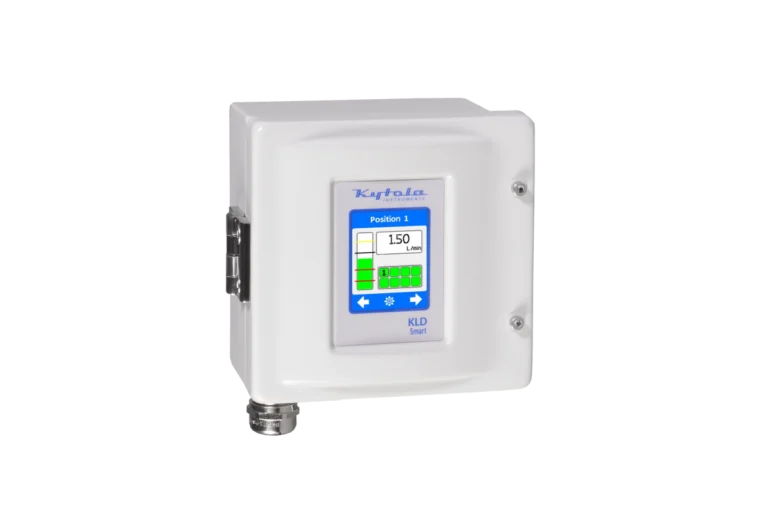

Kytola KLD Smart – Touchscreen display

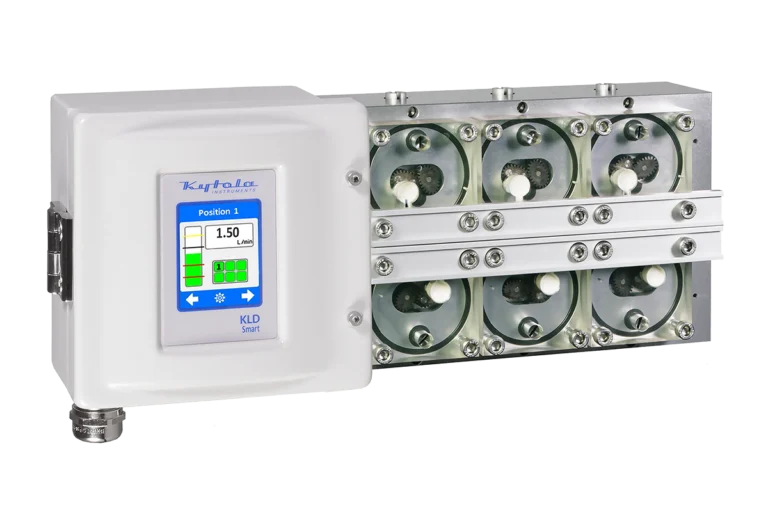

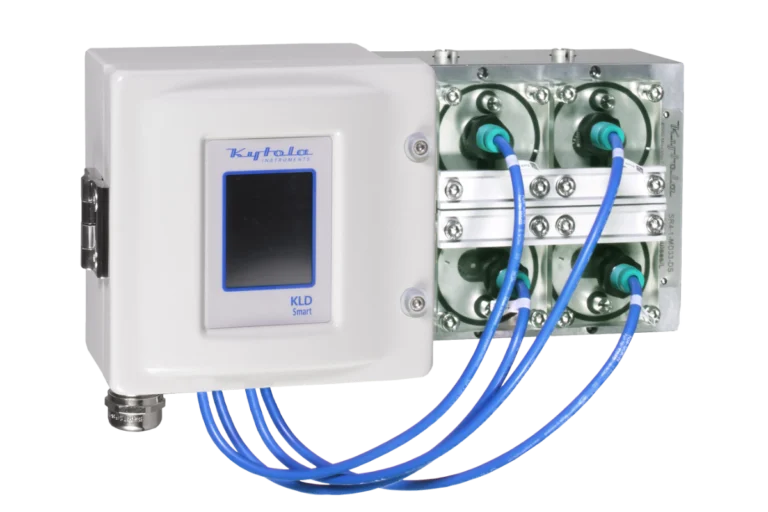

The Kytola KLD Smart local display unit is designed to monitor and display flow rates and flow alarms measured by Kytola Oval Gear Flow Meters, as well as other flow meter products with pulse outputs. The KLD Smart also incorporates the latest technology with an easy to use touchscreen interface. This allows flow rates and alarms to be very visual, and the settings are fast and easy to manage and navigate.
The KLD Smart is especially designed and recommended for monitoring industrial flow and lubrication oil flow monitoring, as well as process control and batching. The device also has a robust painted steel housing and it is protected by IP class 65.
|Supply voltage||10 – 30 VDC||10 – 30 VDC|
|Supply current (maximum)||60 mA||60 mA (190 mA with mA outputs)|
|Sensor types||Kytola coil, NAMUR, NPN, PNP||Kytola coil, NAMUR, NPN, PNP|
|Input frequency||0 – 5 kHz||0 – 5 kHz|
|Communication||Modbus RTU (RS-485), *Modbus TCP (Ethernet)||Modbus RTU (RS-485), *Modbus TCP (Ethernet)|
|Current output||*1 pc, 4 – 20 mA||*8 pcs, 4 – 20 mA|
|Current input||1 pc; linear, square root, table||None|
|Relay output||1 pc NC, max. 48 VAC/DC, 100 mA||1 pc NC, max. 48 VAC/DC, 100 mA|
|Enclosure||Painted steel, *stainless steel AISI 316||Painted steel, *stainless steel AISI 316|
|Ambient temperature||–20°C…+60°C (relative humidity < 85 %,
|–20°C…+60°C (relative humidity < 85 %,
|Dimensions||100 x 140 x 55 mm||149 x 160 x 80 mm|
|Weight||0.7 kg||1.5 kg * Special construction|
