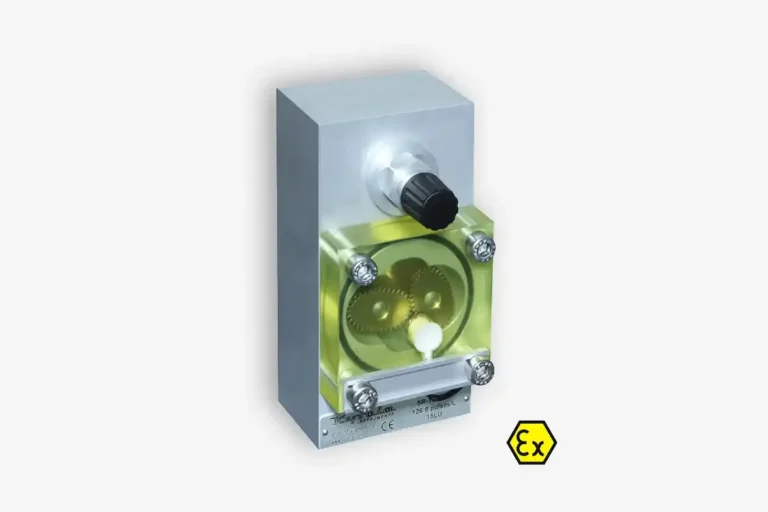

Kytola Oval Gear Flow Meter Model SR
The Model SR oval gear flow meter from Kytola provides reliable, accurate oil flow monitoring for industrial applications. As a positive displacement meter, the Model SR is designed to always show the correct rate of flow, irrespective of changes in temperature or viscosity in the oil.

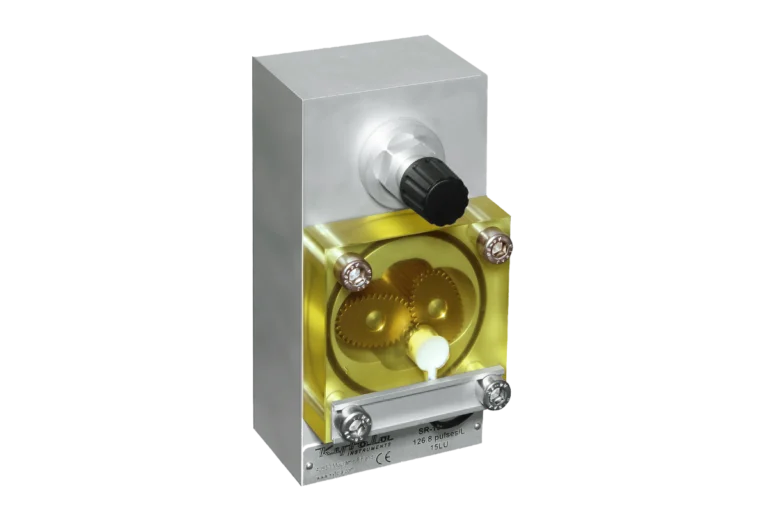

The Model SR instrument is constructed with a transparent cover for a readily visible indication of flow, and can be made with NPT or BSP connectors. Alternative products in a similar style include the Model SRx and the Model SRx-x.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
| SR-10- | SR-20- | SR-30- | SR-60- | SR-120- | ||||
|---|---|---|---|---|---|---|---|---|
| Output (pulses/l) | 126.8 | 75.8 | 49.8 | 22.4 | 17.6 | |||
| Viscosity range | 30 – 1000 cSt | |||||||
| Body / cover material | Aluminium / Polyamide | |||||||
| Sensor | Kytola coil or Namur; DIN 19234 | |||||||
| Valve spindle | AISI 316 | |||||||
| Seals | Viton® | |||||||
| Gears | Brass | |||||||
| Connection | 1″ | 1″ | 1″ | 1 ½” | 1 ½” | |||
| Weight | 1.7kg | 1.9kg | 1.9kg | 5.0kg | 5.0kg | |||
| Max. pressure | 10 or 20 bar* | |||||||
| Max. temperature | +80°C | |||||||
| Accuracy | ±5% of reading | |||||||
