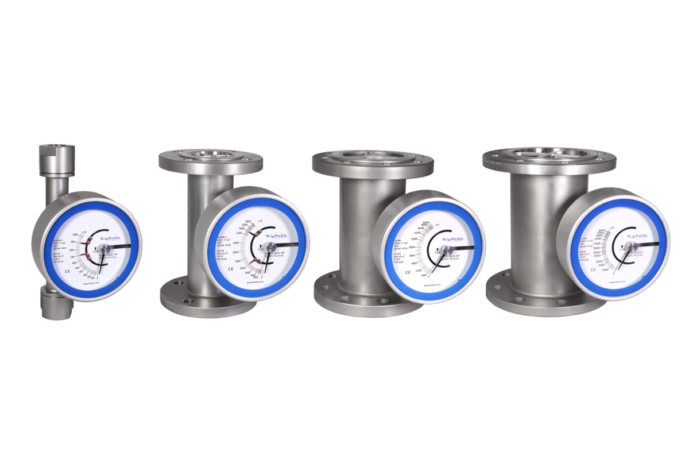

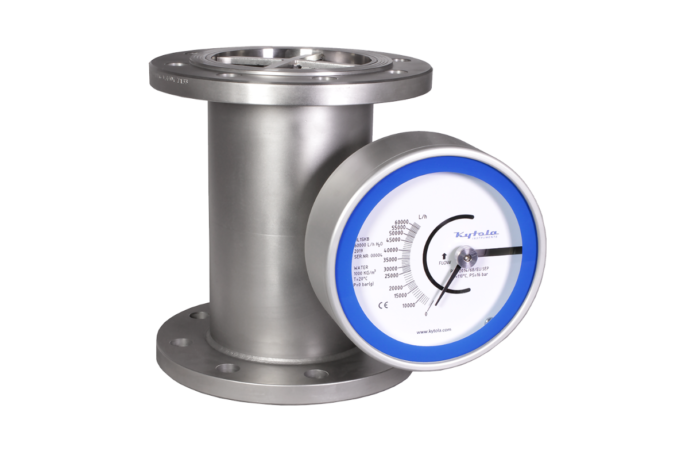

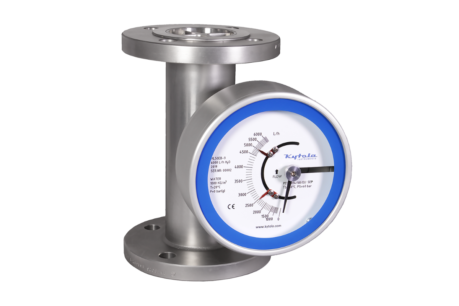

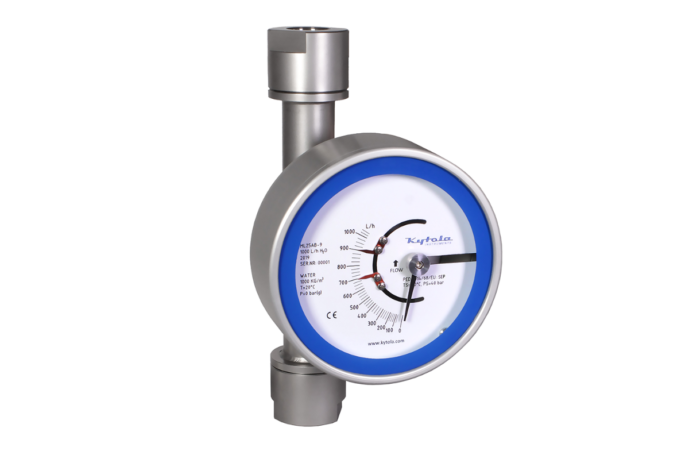

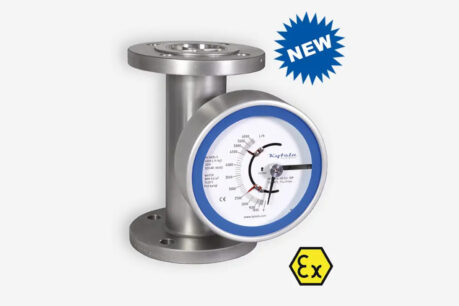

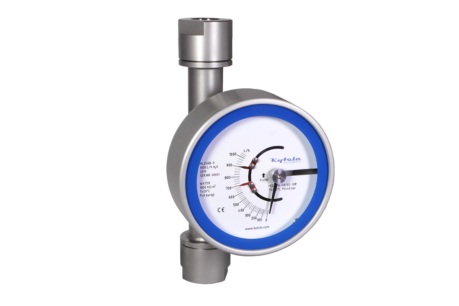

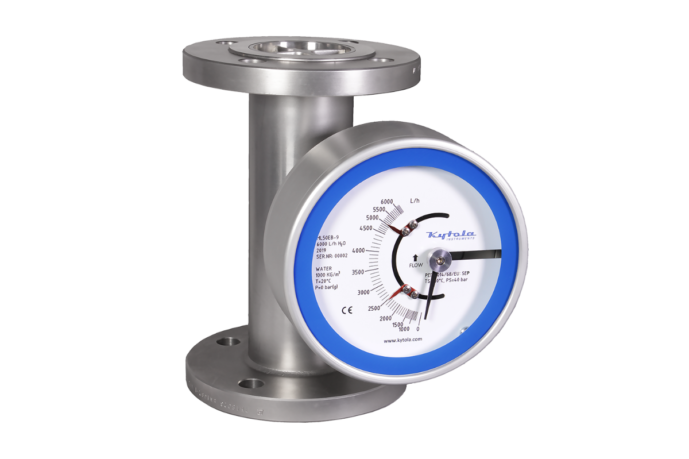

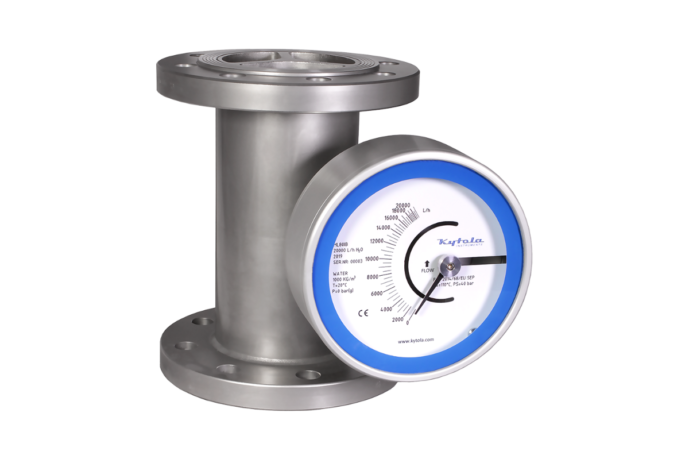

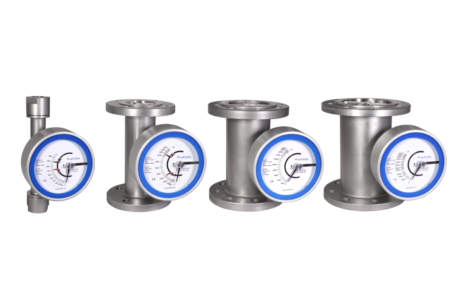

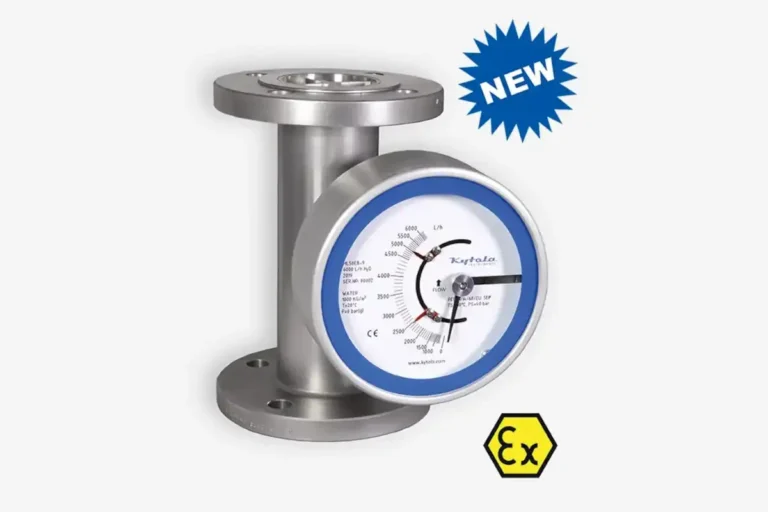

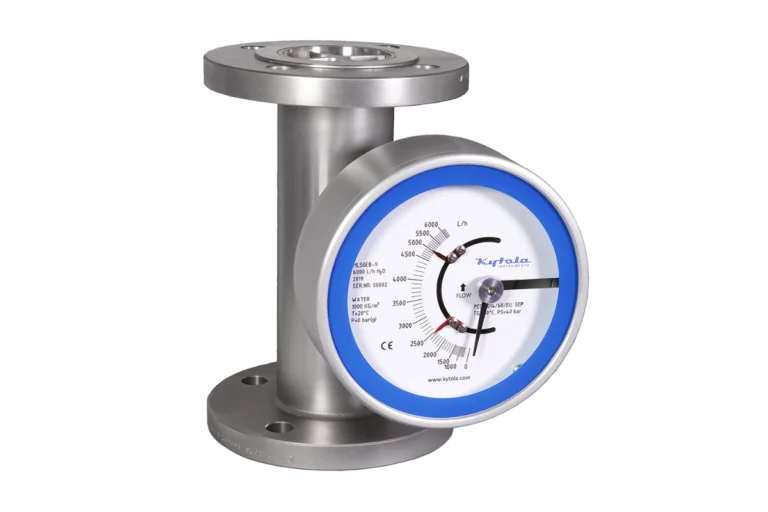

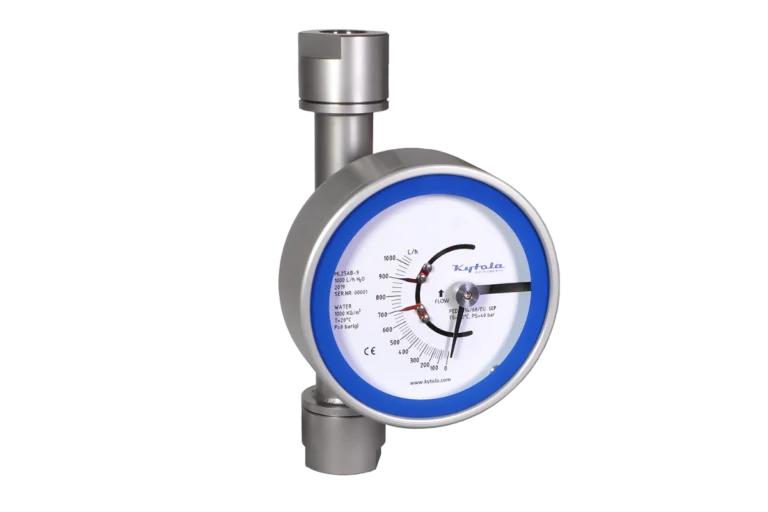

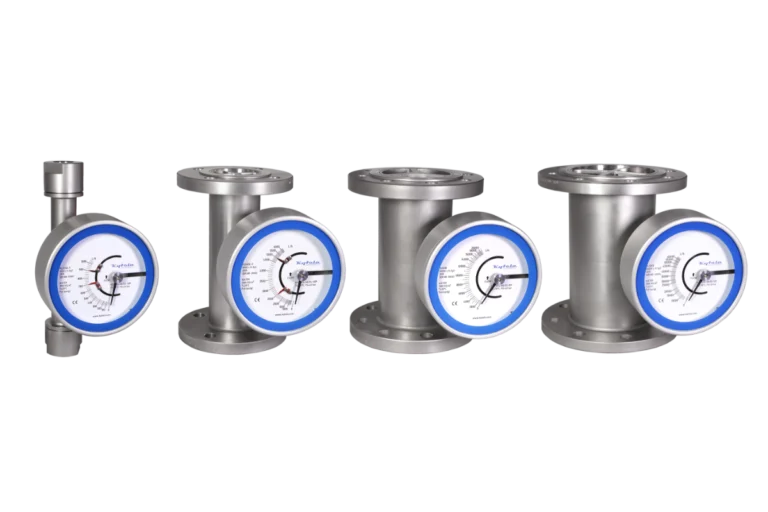

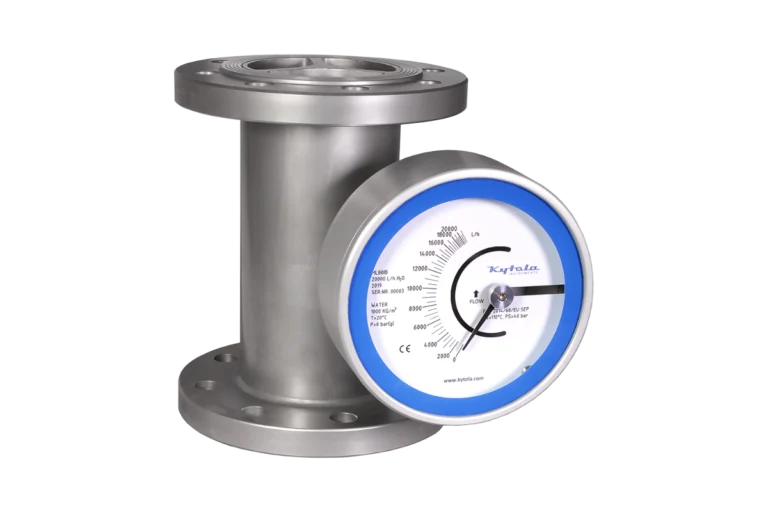

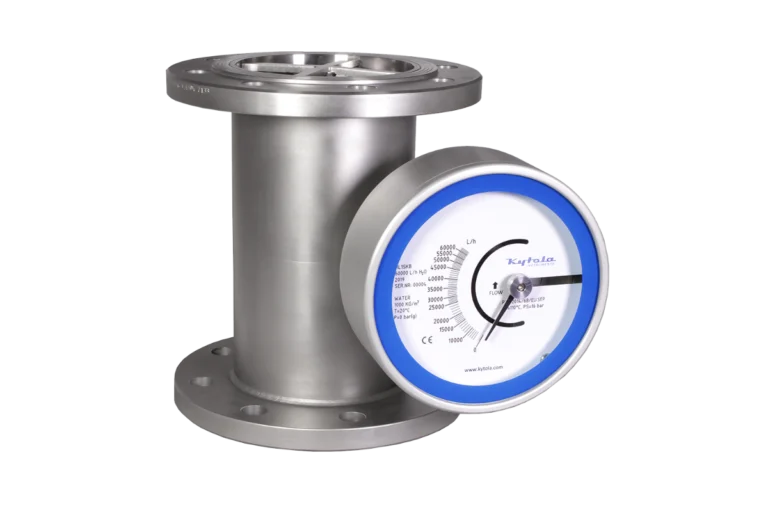

Metal Tube Flow meter Model ML

Metal Tube Flow meter Model ML
Download PDF of Tech Data

The Kytola Metal Tube Flow meter Model ML was created to meet the high market demand for high performance and precise industrial a variable area flow metering principle using a free-floating float.metal tube flow meters for water and other liquid flows. Adaptable to a wide range of liquids, the ML flow meter provides reliable and accurate flow measurements based on a variable area flow metering principle using a free-floating float.

The ML flow meter is also designed to be capable of withstanding high pressure, and has excellent temperature resistance. Typical applications include chemical and petrochemical industries, power plants and general flow measurement.

For a full overview of the technical specifications please see below.

Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

Metal Tube Flow meter Model ML
Flow tube Stainless Steel AISI 316L
Connectors Stainless Steel AISI 316L
Float Stainless Steel AISI 316L
Display housing Aluminium (*Stainless Steel AISI 316L)
Housing window Borosilicate glass
Seals Viton®
Pressure class DN25 – DN50 flanges 40 bar
ANSI/ASME flanges 150 or 300 lbs
JIS flanges 10 or 20 kg/cm²
Maximum temperature +110°C without alarm sensors
+100°C with NAMUR alarm sensors
+80°C with PNP/NPN alarm sensors
Connections DIN/EN flanges
ANSI/ASME flanges
JIS flanges
G/NPT/Rc female threads
Weight
3.7 – 8.9 kg depending on model (aluminium display/housing, stainless steel display/housing add 1,6 kg).
Accuracy ±5% F.S. (H₂O at +20°C)
*) Special construction on request
