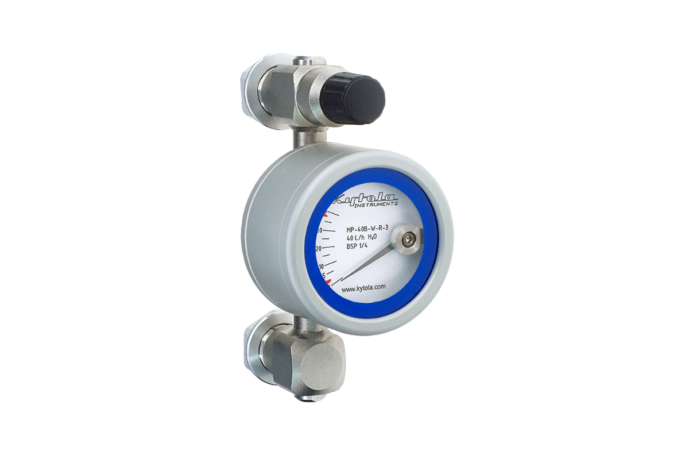

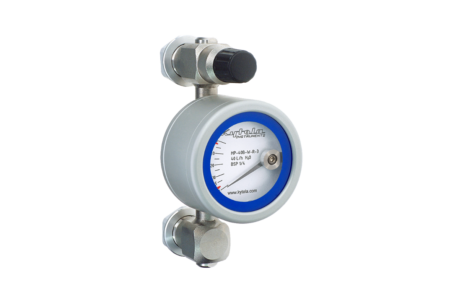

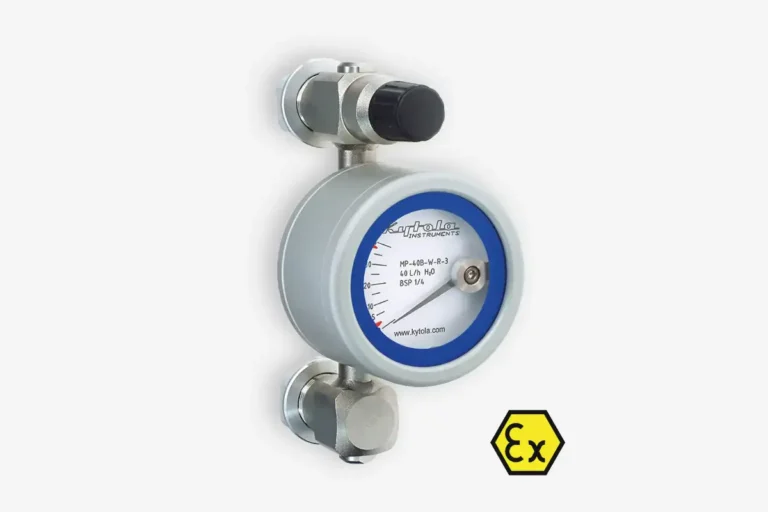

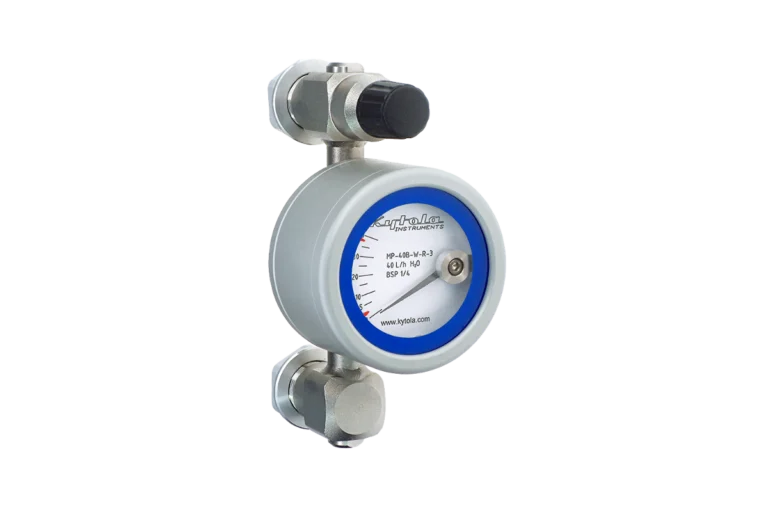

Metal Tube Flow meter Model MP-W
The Kytola metal Tube flow meter model MP is a compact flow meter that uses AISI 316L stainless steel parts. The Model MP-W is designed to withstand high pressure, temperature and aggressive media and is suitable for a wide range of liquids and gases. Similar to other Kytola prodcts, it uses a variable area metering principle using a free-floating float for reliable and accurate flow measurements. This flow meter is often used for chemical and petrochemical industries, power plants and general flow measurements.
For a full overview of the technical specifications please see below.
Technical Spec
| Metal Tube Flow meter Model MP-W | ||
|---|---|---|
| Flow tube | Stainless Steel AISI 316L | |
| Connectors | Stainless Steel AISI 316L | |
| Float | Stainless Steel AISI 316L | |
| Display housing | Aluminium (*Stainless Steel AISI 316L) | |
| Housing window | Polycarbonate (*Borosilicate glass) | |
| Seals | Viton® (*EPDM) | |
| Maximum pressure | 100 bar | |
| Maximum temperature | +100°C with alarms / +150°C without alarms | |
| Connections | G / NPT / Rc 1/4″ or 1/2″ (depending on range) | |
| Weight | 920 g | |
| *) Special construction on request | ||
