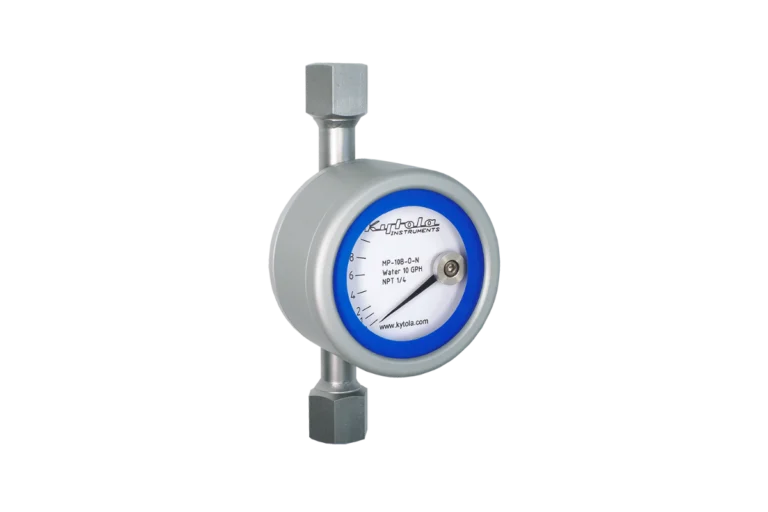

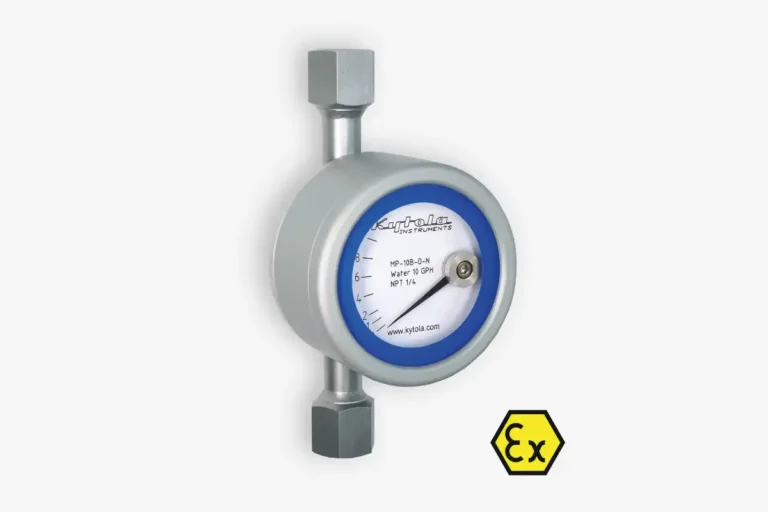

Metal tube Flow meter Model MP-O
The Kytola Metal tube flow meter Model MP-O is a compact flow meter with AISI 316L stainless steel parts. This product is designed to withstand high pressure as well as temperatures and aggressive media. The Kytola Metal tube Flow meter Model MP-O is also compatible with a wide range of liquids and gases and provides reliable and accurate flow measurement based on variable area metering principle using a free-floating float. This flow meter is typically used for chemical and petrochemical industries, power plants and general flow measurements.
For a full overview of the technical specifications please click here.
Technical Spec
| Metal tube Flow meter Model MP-O | ||
|---|---|---|
| Flow tube | Stainless Steel AISI 316L | |
| Connectors | Stainless Steel AISI 316L | |
| Float | Stainless Steel AISI 316L | |
| Display housing | Aluminium (*Stainless Steel AISI 316L) | |
| Housing window | Polycarbonate (*Borosilicate glass) | |
| Maximum pressure | 235 bar | |
| Maximum temperature | +100°C with alarms / +150°C without alarms | |
| Connections |
|
|
| Weight | 700 g | |
| *) Special construction on request | ||
