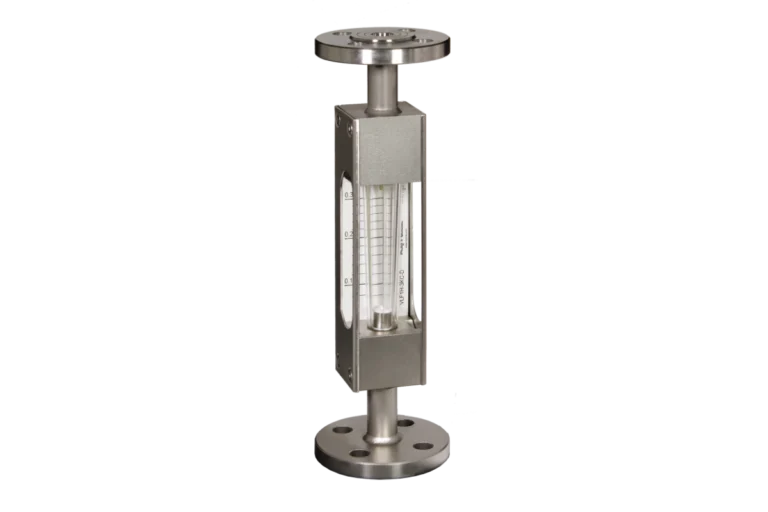

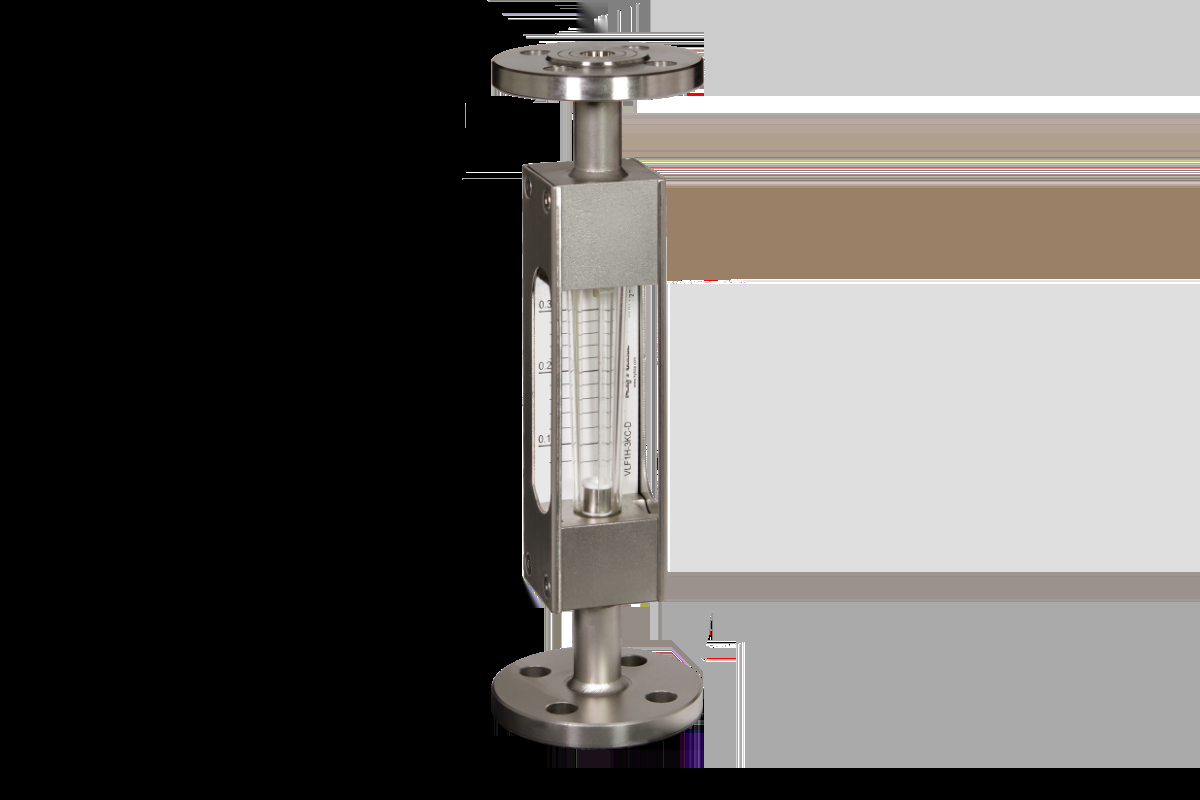

Kytola Variable Area Flow Meter Model VLFH
Model VLFH variable area flow meters by Kytola offer a reliable way to monitor liquid and gas flow in industrial environments. The VLFH model features a sturdy construction with an impact-resistant flow tube encased in stainless steel casing to provide clear measurement for lubrication oil, flush water, sealing and cooling water and much more.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
Technical Spec
| VLF1H- | VLF2H- | |
|---|---|---|
| Tube / body material | Grilamid (PA-12) or PES* / AISI 316 | Grilamid (PA-12) or PES* / AISI 316 |
| Float | AISI 329 | AISI 329 |
| Seals | Nitrile, Viton®* or EPDM* | Nitrile, Viton®* or EPDM* |
| Weight | 5.1kg | 6.3kg |
| Connection | DN25 PN25, ANSI ½” 150lbs flanges | DN25 PN25, ANSI ½” 150lbs flanges |
| Max. pressure | 20 bar (30 bar/30°C) | 20 bar (30 bar/30°C) |
| Max. temperature | 80°C / 120°C* | 80°C / 120°C* |
| Accuracy | ±5% F.S. | ±5% F.S. |
| * Available as a special construction – please speak to our team to discuss your requirements. | ||
