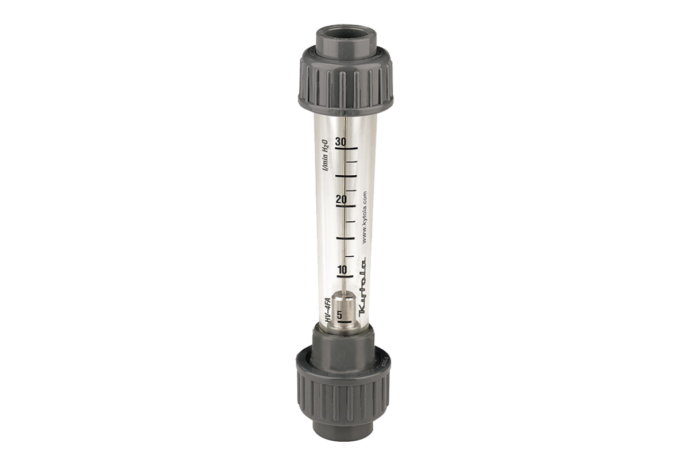

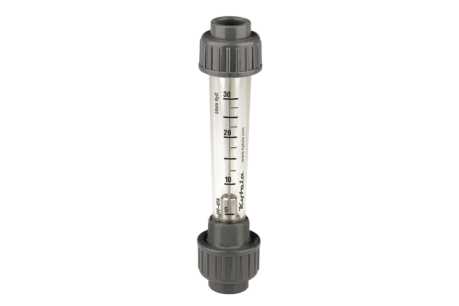

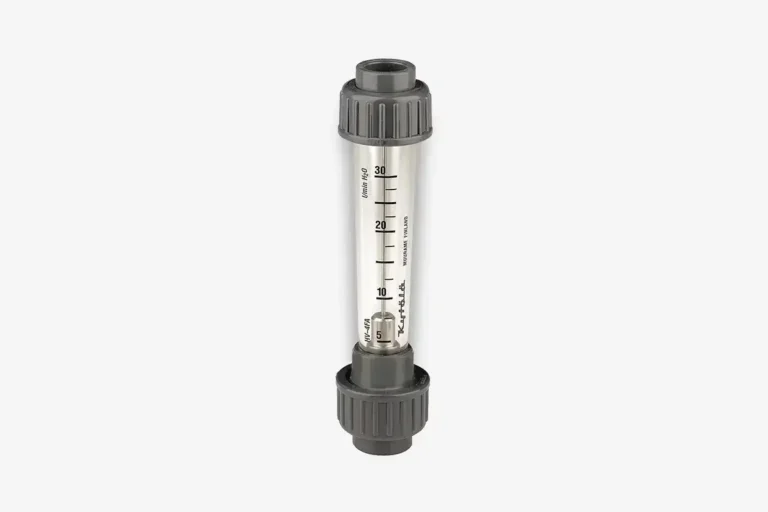

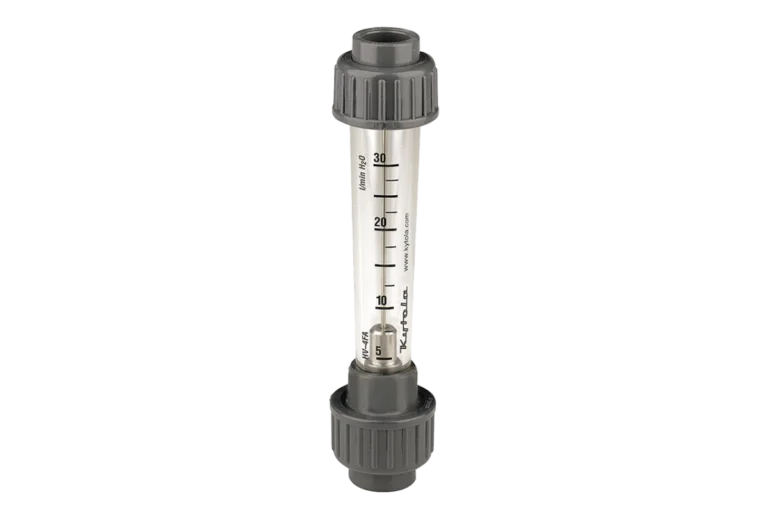

Kytola Variable Area Flow Meter Model HV
The Kytola Model HV is an industrial flow meter, designed for durability in chemical and process industry environments, agricultural applications, water treatment plants and flow measurement applications using PVC piping. The Model HV is a reliable, low-cost instrument, ideal for liquid and gas flow monitoring. Other products in this range include the Model HT.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
| Material | Grilamid (PA-12) or PES* tube; PVC, AISI 316* or PVDF* connectors |
|---|---|
| Float | AISI 329 or AISI 329/PTFE |
| Weight | 120g |
| Connection | BSP/NPT ½" or 20mm |
| Max. pressure | 10 bar / 20°C or 10 bar / 80°C* |
| Max. temperature | 50°C / 2 bar or 120°C / 2 bar* |
| Accuracy | ±5% F.S. (H₂O +20°C) |
