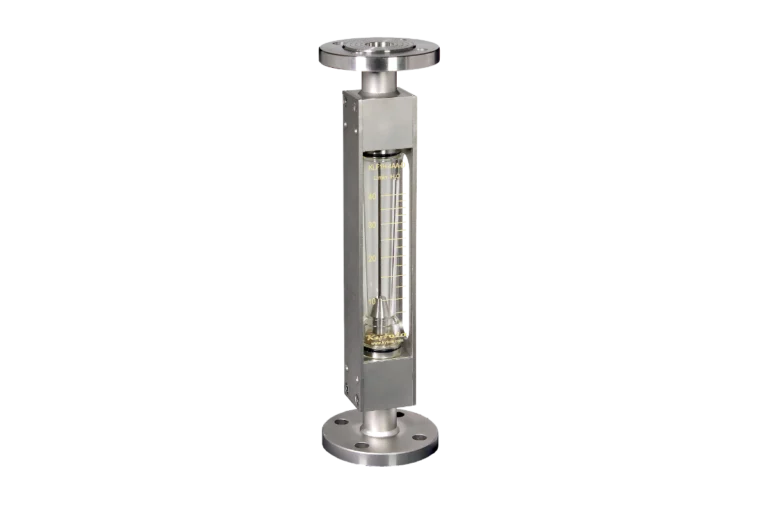

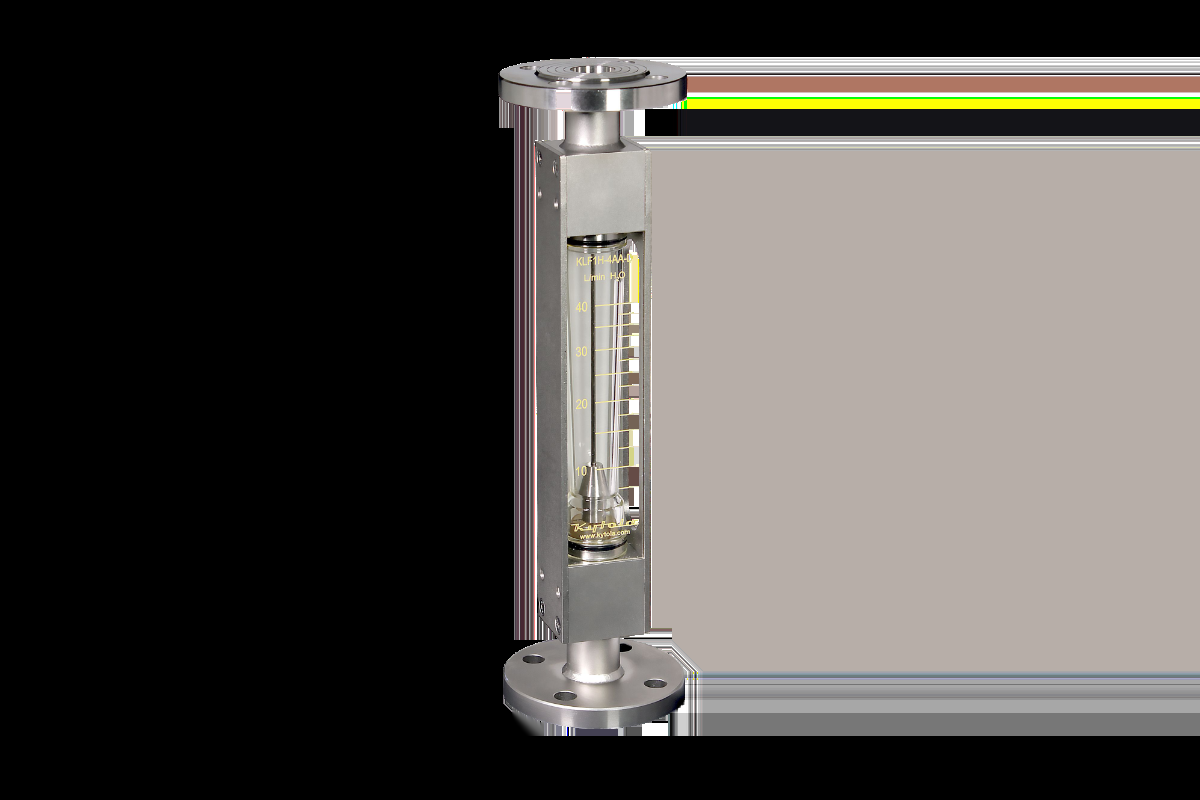

Kytola Variable Area Flow Meter Model KLFH
Kytola Model KLFH flow meters are designed for industrial use and feature a protected flow tube and DN or ANSI flange connections. Model KLFH variable area flow meters are suitable for liquid or gas, and are typically used in lubrication oil measurements, flush water applications and vacuum pumps.
Optional features include scales for alternative liquids or gases and a low/high flow alarm if required. Our team are happy to help you determine the best construction for your application, just get in touch.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
|Tube Material||Grilamid (PA-12) or PES*||Grilamid (PA-12) or PES*|
|Body||AISI 316||AISI 316|
|Float||AISI 329||AISI 329|
|Seals||Nitrile, Viton®* or EPDM*||Nitrile, Viton®* or EPDM*|
|Connection||DN25 PN25, ANSI 1” 150lbs flanges||DN40 PN25, ANSI 1½” 150 lbs flanges|
|Max. temperature||80°C / 120°C||80°C / 120°C|
|Accuracy||±5% F.S.||±5% F.S.|
|* Available as a special construction – please speak to our team to discuss your requirements.|
