Kytola Variable Area Flow Meter Model E

Kytola Variable Area Flow Meter Model E

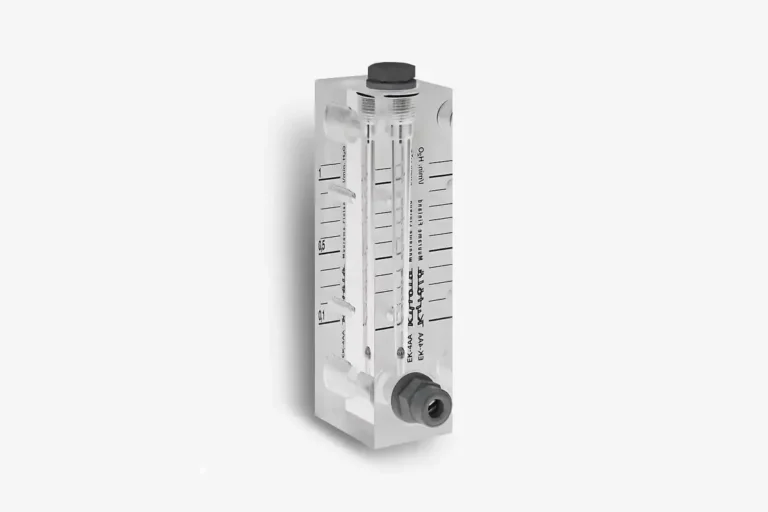

The Model E variable area flow meter by Kytola features a flow adjustment valve and is available in single tube and multi-tube options. Constructed from high-quality acrylic with clear print for efficient reading, the Model E is typically used in air and water purging, and shield gas measurements. The unit’s maximum working temperature is 75°C and maximum pressure load is 20 bar (30 bar/30°C).

This component has several options for customisation, including special scale marking, thread adapters and an inductive low or high flow alarm. If your application requires a special construction, please contact our team to see how we can help.

Contact our team on +44(0)1825 764737 to place an order.

For a full overview of the technical specifications please click here.

Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

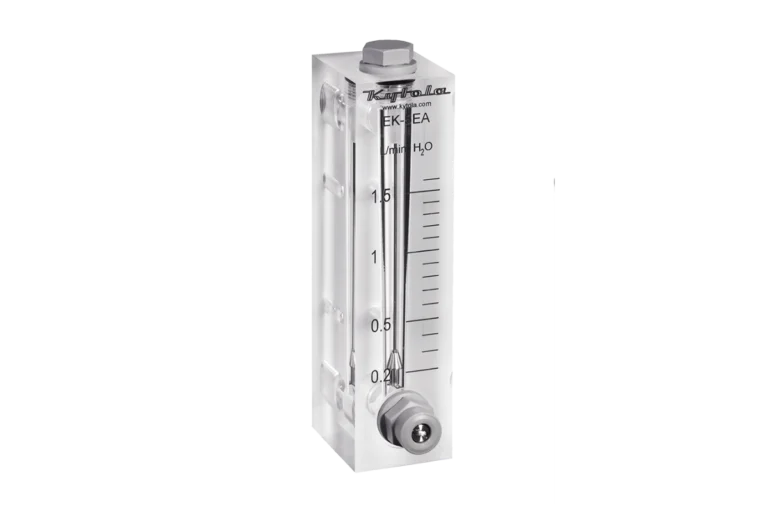

EK- EH-
Material Acrylic (PMMA) Acrylic (PMMA)
Valve Nylon housing/plugs. AISI 316 spindle housing/plugs/spindle all AISI 316
Seals Nitrile, Viton®* or EPDM* Nitrile, Viton®* or EPDM*
Weight 170g 200g
Connection BSP ¼” BSP ¼”
Max. pressure 20 bar (30 bar/30°C) 20 bar (30 bar/30°C)
Max. temperature 75°C 75°C
Accuracy ±5% F.S. (H2O, +20°C) ±5% F.S. (H2O, +20°C)
* Available as a special construction – please speak to our team to discuss your requirements.
