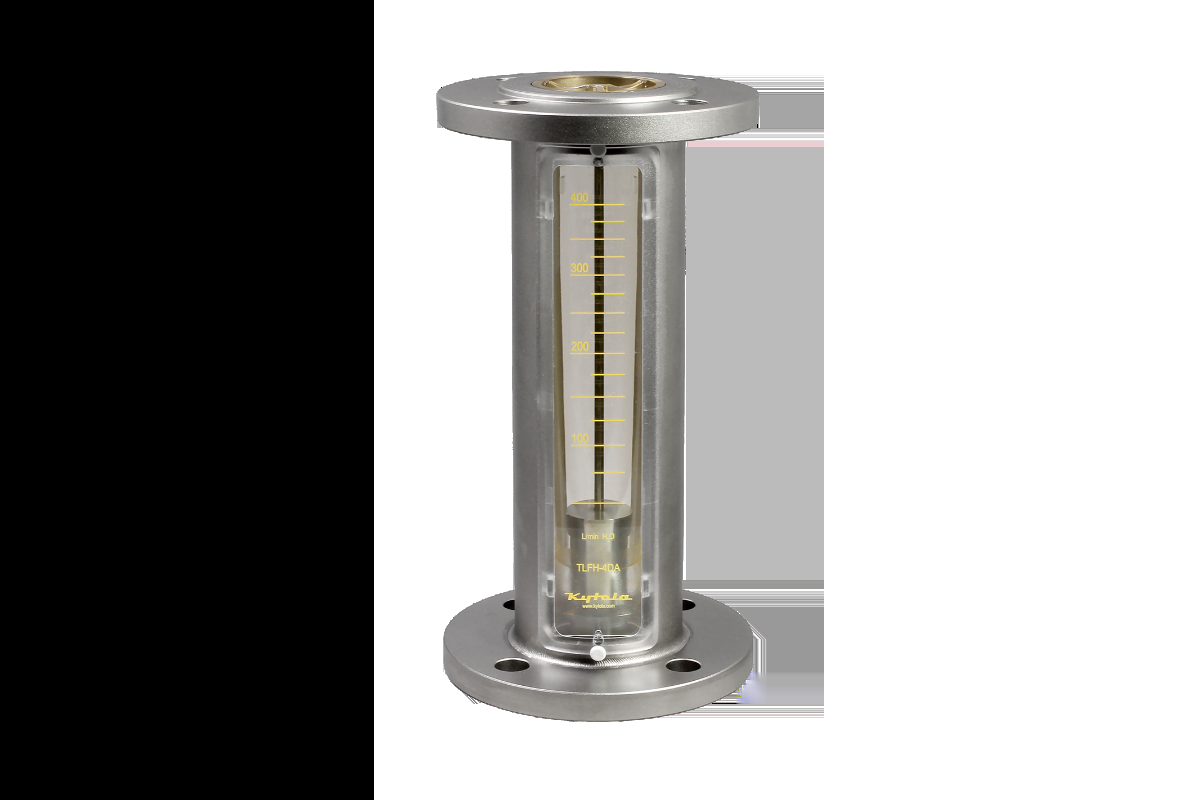

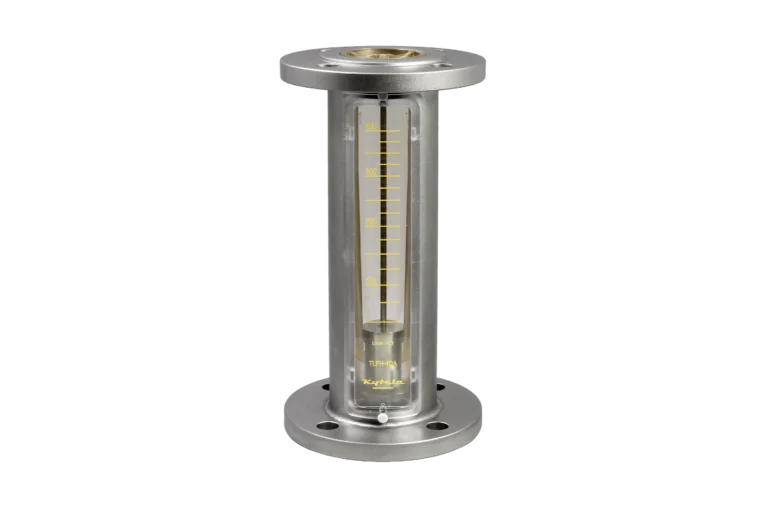

TLFH – Kytola Variable Area Flow Meter

The acrylic variable area flow meter TLFH is an excellent choice for industrial flow measurement and monitoring of large liquid and gas flows. It is highly dependable and accurate.

Kytola’s model TLFH measures and monitors liquid and gas flows in a variety of applications with high precision. The flow meter has an injection molded impact resistant flow tube with DN or ANSI flange connections. The TLFH variable area flow meter has good corrosion resistance. The flow meter is aimed for large flows and it has a sturdy stainless AISI 316 or aluminium body.

Contact our team on +44(0)1825 764737 to place an order.

* Available as a special construction – please speak to our team to discuss your requirements.

Request a Quote
Tube / body material
Acrylic (PMMA) / AISI 316
Float
AISI 329
Seals
Nitrile, Viton®* or EPDM*
Weight
17.5kg
Connection
DN 80
Max. pressure
16 bar
Max. temperature
75°C
Accuracy
±5% F.S.
