Kytola Variable Area Flow Meter Model KL

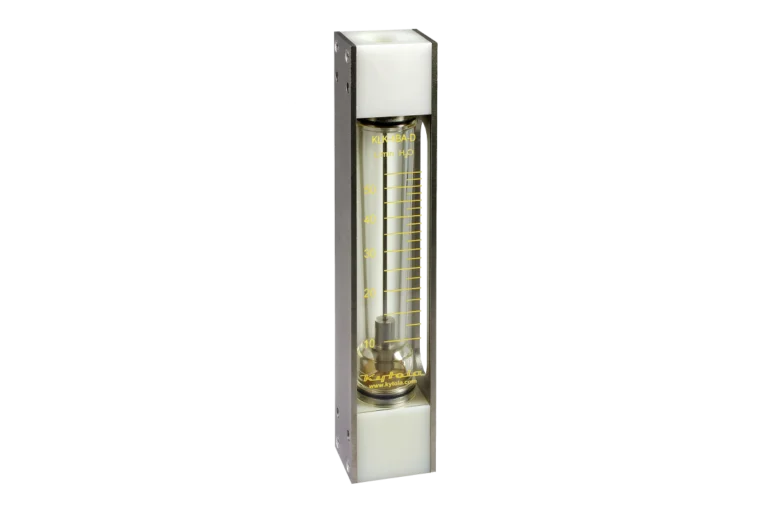

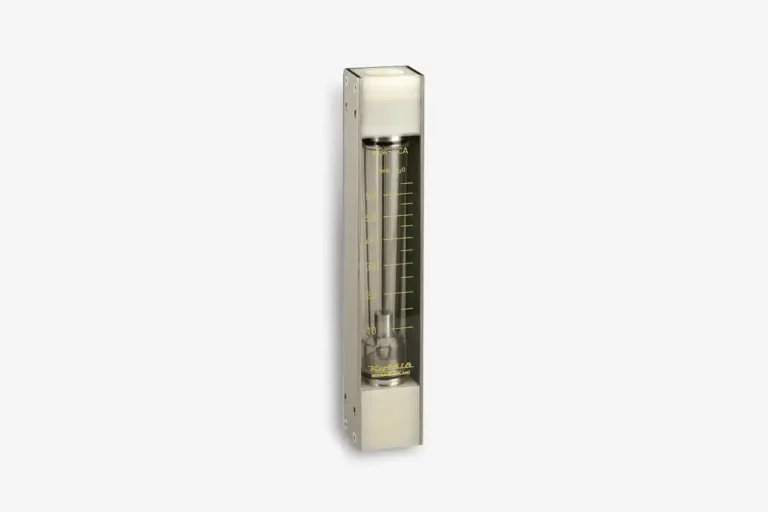

Kytola variable area flow meters in the Model KL range are constructed from a heavy-duty polymer flow tube protected by stainless steel side plates and robust end blocks in aluminium, AISI 316 or polymide. Model KL instruments are designed to be durable and reliable in industrial applications such as water treatment, sealing water measurements in vacuum pumps and oil measurements.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
|Body Material||Grilamid (PA-12) or PES*||Grilamid (PA-12) or PES*||Grilamid (PA-12) or PES*|
|End blocks / side plates||Aluminium / AISI 316||AISI 316 / AISI 316||Nylon / AISI 316|
|Float||AISI 329||AISI 329||AISI 329|
|Seals||Nitrile, Viton®* or EPDM*||Nitrile, Viton®* or EPDM*||Nitrile, Viton®* or EPDM*|
|Connection||BSP 1″ or NPT 1″||BSP 1″ or NPT 1″||BSP 1″ or NPT 1″|
|Max. pressure||30 bar||30 bar||20 bar|
|Max. temperature||80°C / 120°C||80°C / 120°C||80°C|
|Accuracy||±5% F.S. (H2O, +20°C)||±5% F.S. (H2O, +20°C)||±5% F.S. (H2O, +20°C)|
|* Available as a special construction – please speak to our team to discuss your requirements.|
