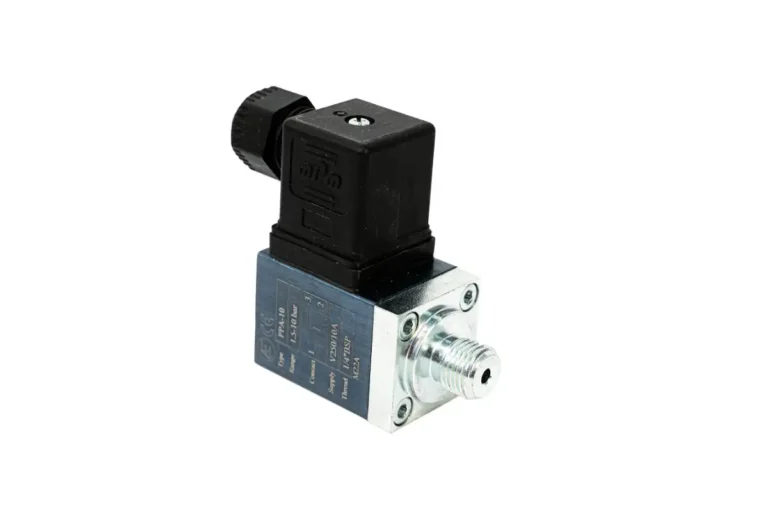

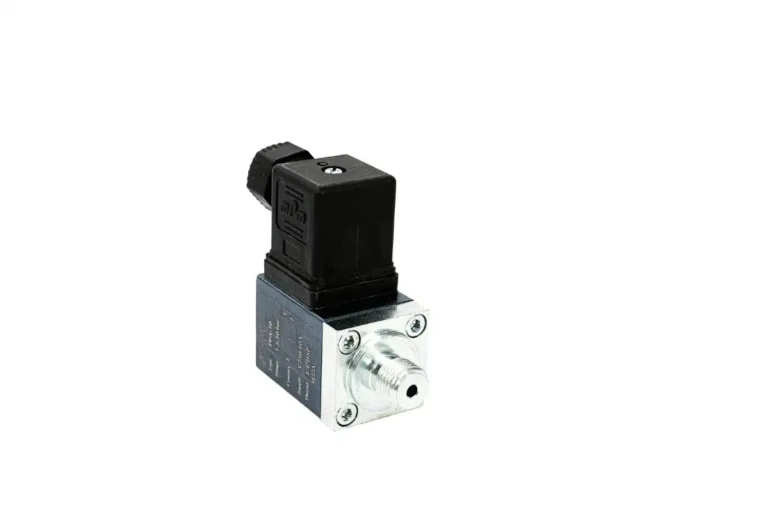

PPA/PPS Range Pressure Switch

PPA/PPS Range Pressure Switch
Download PDF of Tech Data

The PPA/PPS pressure switch range offers a very rugged construction featuring a solid anodized aluminium body mounted onto a zinc plated steel flange with a choice of male threads.

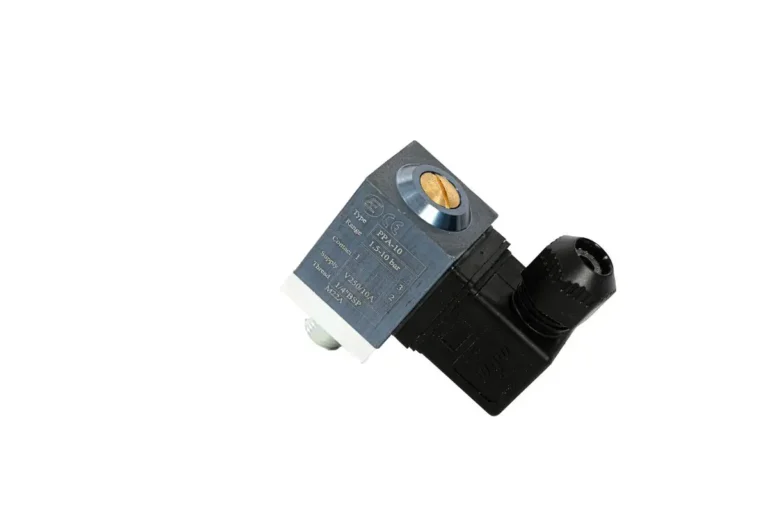

In addition to a rugged construction, we have decided to fit a 10A micro switch as standard (gold plated 100mA contacts are available on request for low voltage applications), the PPA/PPS is also fitted with either an HNBR diaphragm or piston dependent on adjustment range to help cope with temperature extremes. The PPA/PPS is easily adjusted with the switch in situ as the adjustment screw is mounted at the top and not located underneath the electrical connector.

Also available in DPDT option, DIN 43650A electrical connector included.

Download (PDF, 206KB)

Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

Construction Anodized aluminium and zinc plated steel
Electrical Rating 250V/10A
Ranges 0.1-1 to 40-300 bar
Process Connection 1/8"BSPT, 1/4"BSPT, 1/8" BSPP or 1/4"BSPP

Related Categories

  • Pressure & Vacuum
  • Pressure Switches
  • Single Pole Double Throw Pressure Switches

Advantages

  • Extremely rugged construction
  • 10A Micro Switch
  • Low cost
  • Easy to adjust

Applications

  • All general purpose pressure applications
