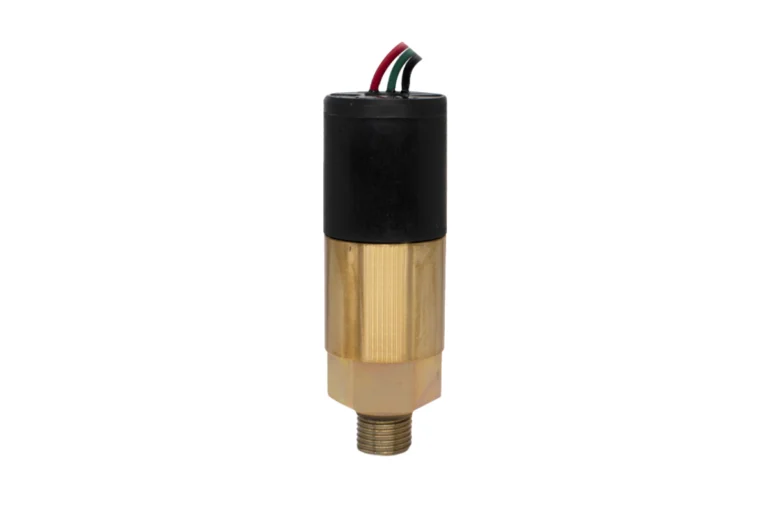

PS75 SPDT Rugged Cylindrical Type Pressure Switch
The PS75 Series pressure switch has all metal surfaces for overload stops and deliver reliable operation under extremely high pressure surges. They are designed with a wear disc and cushioning ring for increased life. The switches use a piston/diaphragm design, which combine the high proof pressure of piston technology with the sensitivity of a diaphragm design. They can be field or factory adjusted.
Technical Spec
| Adjustment Ranges | 5 - 25 psi ((0.35 - 1.7 Bar) to 2500 - 6000psi (172.4 - 413.7 Bar) |
|---|---|
| Switch rating | 5 Amp @ 12/24Vdc and 125/250Vac |
| Diaphragm | Nitrile (Standard), EPDM, Viton ® or Neoprene |
| Fitting | Zinc Plated Steel (standard) or 316 stainless steel (option) |
| 1/4" BSP standard (other threads available) | |
| Proof pressure | 9000 psi (600 Bar) |
