APA – Adjustable SPDT Pressure Switch

Name: APA - Adjustable SPDT Pressure Switch
SKU: APA
Availability: InStock

Model: APA

Designed by and manufactured exclusively for Applications Engineering, the APA pressure switch range offers exceptional value for money matched with a proven quality.

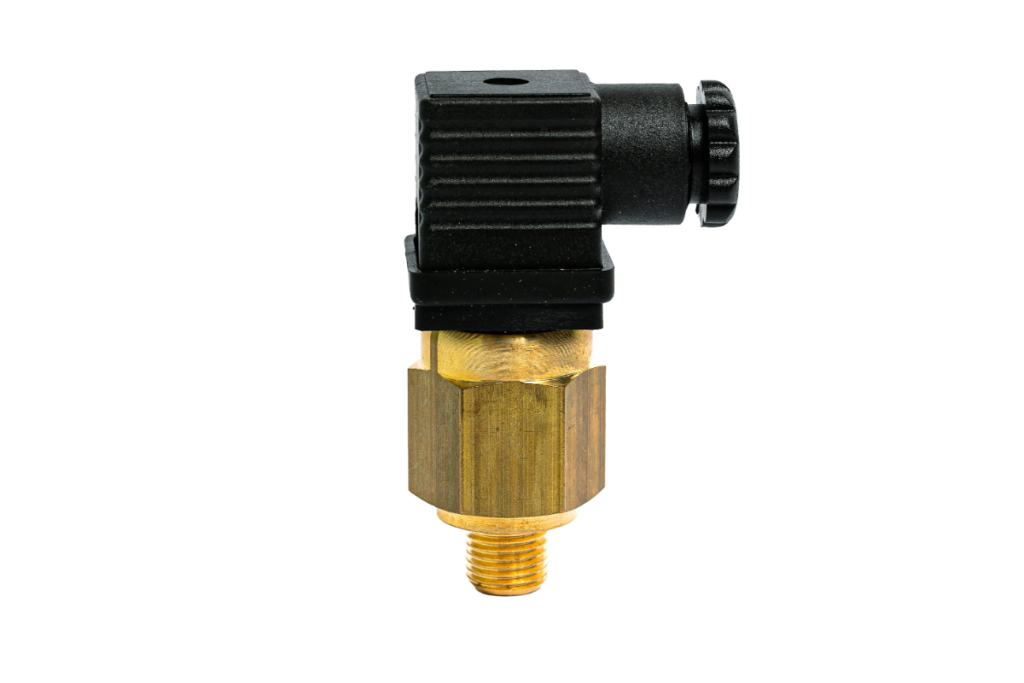

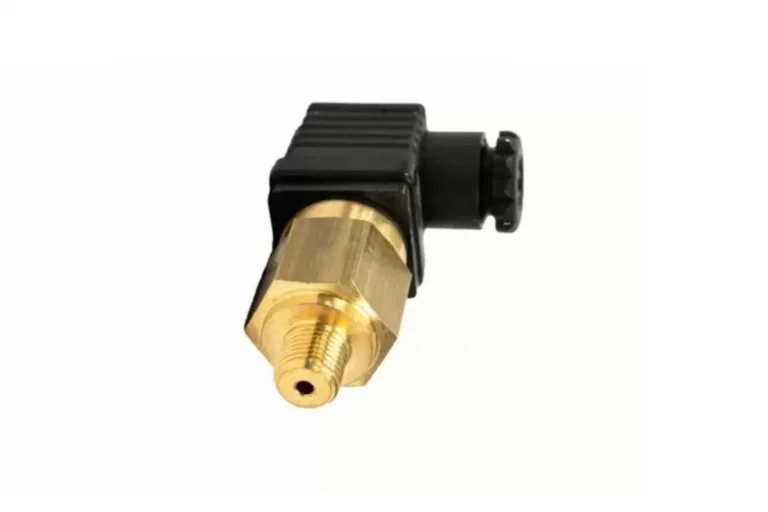

This range of single pole double throw type pressure switches is available with adjustment options spanning 0.1 to 300 bar and comes in a format that is familiar to customers but has many different options for those with specific requirements including body materials, electrical contacts and thread types. Standard models are supplied complete with DIN 43650A electrical connector.

These high quality SPDT pressure switches are manufactured in Italy for Applications Engineering Ltd and list prices start at only £22.95 each, we can offer unbeatable pricing for OEM’s and volume customers so please give us a call to discuss your requirements.

Download Product Technical Specification

Range

Thread Size

Contacts

Electrical Connection

Diaphragm/Piston

Body Material

Degreased

Clear

Product Code

APA

Price

(ex. VAT) Make a selection above to show pricing

Stock

10+ Units pricing or bespoke options, please contact our sales team!

Categories

Pressure

Pressure Switches

Single Pole Double Throw Pressure Switches

Technical Specification: Please make a selection above to see the technical specifications
Range & Prices: Model
Description
List Price
Stock
APA-10-G1/2-NO-SP-N
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/2 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Brass / Degreased: No
£17.06
13 in stock
APA-10-G1/4-CO-DC-E-316
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: EPDM / Body Material: 316 SS / Degreased: No
£39.92
11 in stock
APA-10-G1/4-CO-DC-N
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Brass / Degreased: No
£22.95
Out of stock
APA-10-G1/4-CO-DC-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£22.95
Out of stock
APA-10-G1/4-NC-SP-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/4 / Contacts: NC: (Normally Closed) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£15.30
Out of stock
APA-10-G1/4-NO-SP-N
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/4 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Brass / Degreased: No
£15.30
17 in stock
APA-10-G1/8-NO-SP-V
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/8 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: Viton / Body Material: Brass / Degreased: No
£15.74
2 in stock
APA-10-G1/8T-NO-SP-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/8T / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£15.30
999 in stock
APA-10-G1/8T-NO-SP-V-ZN
APA - Adjustable SPDT Pressure Switch - Range: 1-10 Bar / Thread Size: G1/8T / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: Viton / Body Material: Zinc plated steel / Degreased: No
£15.74
40 in stock
APA-150-G1/4-CO-DC-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 20-150 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£22.95
18 in stock
APA-150-G1/8-NO-SP-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 20-150 Bar / Thread Size: G1/8 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£15.65
5 in stock
APA-1-G1/4-CO-DC-HNBR
APA - Adjustable SPDT Pressure Switch - Range: 0.1-1 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: HNBR / Body Material: Brass / Degreased: No
£28.79
Out of stock
APA-1-G1/4-CO-DC-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 0.1-1 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£22.95
5 in stock
APA-1-G1/4-CO-DC-V-ZN
APA - Adjustable SPDT Pressure Switch - Range: 0.1-1 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: Viton / Body Material: Zinc plated steel / Degreased: No
£22.95
40 in stock
APA-1-G1/4-NC-SP-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 0.1-1 Bar / Thread Size: G1/4 / Contacts: NC: (Normally Closed) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£12.40
102 in stock
APA-1-G1/4-NO-SP-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 0.1-1 Bar / Thread Size: G1/4 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: Viton / Body Material: Zinc plated steel / Degreased: No
£15.30
Out of stock
APA-2-G1/4-CO-DC-E
APA - Adjustable SPDT Pressure Switch - Range: 0.15-2 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: EPDM / Body Material: Brass / Degreased: No
£22.95
Out of stock
APA-2-G1/4-CO-DC-E-316
APA - Adjustable SPDT Pressure Switch - Range: 0.15-2 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: EPDM / Body Material: 316 SS / Degreased: No
£39.91
2 in stock
APA-2-G1/4-CO-DC-N
APA - Adjustable SPDT Pressure Switch - Range: 0.15-2 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Brass / Degreased: No
£22.95
18 in stock
APA-2-G1/8T-NO-SP-V-ZNSG
APA - Adjustable SPDT Pressure Switch - Range: 0.15-2 Bar / Thread Size: G1/8T / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: Viton / Body Material: Zinc plated steel / Degreased: Yes
£17.28
20 in stock
APA-300-18NPT-NC-SP-NZNHP
APA - Adjustable SPDT Pressure Switch - Range: 30-300 Bar / Thread Size: 1/8NPT / Contacts: NC: (Normally Closed) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£18.67
7 in stock
APA-300-G1/4-CO-DC-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 30-300 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£24.20
14 in stock
APA-300-G1/4-CO-DC-V-316
APA - Adjustable SPDT Pressure Switch - Range: 30-300 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: Viton / Body Material: 316 SS / Degreased: No
£53.14
Out of stock
APA-300-G1/4-NC-SP-N-ZNHP
APA - Adjustable SPDT Pressure Switch - Range: 30-300 Bar / Thread Size: G1/4 / Contacts: NC: (Normally Closed) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£18.67
8 in stock
APA-300-G1/4-NO-SP-N-ZNHP
APA - Adjustable SPDT Pressure Switch - Range: 30-300 Bar / Thread Size: G1/4 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£18.67
11 in stock
APA-300-G1/8-NO-SP-N-ZNHP
APA - Adjustable SPDT Pressure Switch - Range: 30-300 Bar / Thread Size: G1/8 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£21.09
Out of stock
APA-50-G1/4-CO-DC-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 10-50 Bar / Thread Size: G1/4 / Contacts: SPDT: (Single Pole Double Throw) / Electrical Connection: DIN 43650A / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£22.95
24 in stock
APA-50-G1/4-NO-SP-N-ZN
APA - Adjustable SPDT Pressure Switch - Range: 10-50 Bar / Thread Size: G1/4 / Contacts: NO: (Normally Open) / Electrical Connection: Spade Terminals / Diaphragm/Piston: NBR / Body Material: Zinc plated steel / Degreased: No
£15.30
2 in stock
Downloads: Product Datasheet

View Download
