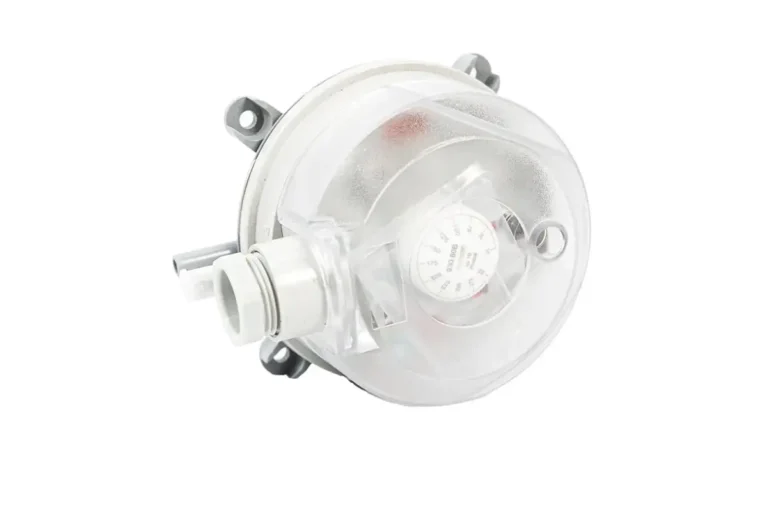

Differential Pressure Switch – 930.8 Series
Adjustable differential pressure switches for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases.
Possible uses:
- Monitoring air filters and ventilators
- Monitoring industrial cooling-air circuits
- Overheating protection for fan heaters
- monitoring flows in ventilation ducts
- Controlling air and fire-protection flaps
- Frost protection for heat exchangers
Technical Spec
| Ranges | 930.80 - 20 to 300 Pascals |
|---|---|
| 930.84 - 30 to 400 Pascals | |
| 930.83 - 50 to 500 Pascals | |
| 930.85 - 200 to 1000 Pascals | |
| 930.86 - 500 to 2500 Pascals | |
| 930.87 - 1000 to 4000 Pascals | |
| Temperature Range | -20°C to +85°C |
| Electrical Rating | 1A (0.4A)/250Vac |
| Switch Type | SPDT |
| Connections | 2 x 6mm pipe connections |
