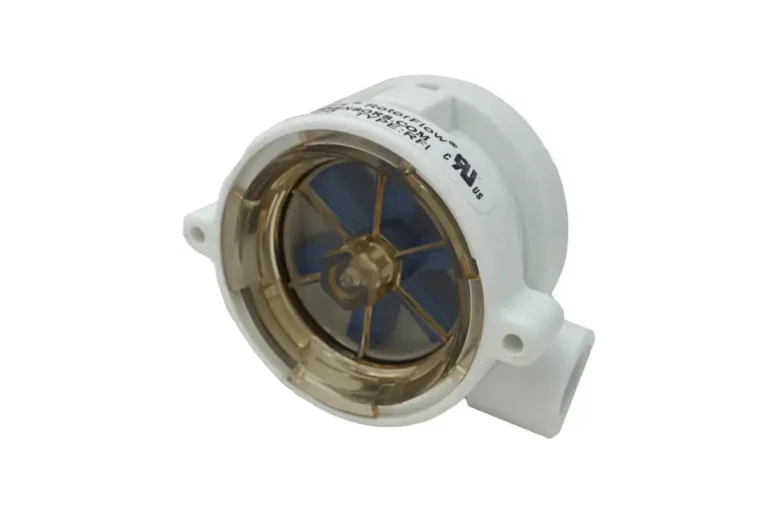

Visual Flow Indicator – RFO/RFA Type With Continuous Output
The RFO/RFA flow indicator combines high visibility rotors with solid-state electronics that are packaged into compact, panel mounting housings. They provide accurate flow rate output with integral visual confirmation and an unprecedented price/performance ratio. The RFO has a pulsed DC output while the RFA has a 0-10V output.
Applications:
- Water Purification/Dispensing Systems
- Chemical Metering Equipment
- Lasers and Welders
- Water Injection Systems
- Semiconductor Processing Equipment
- Chillers and Heat Exchangers
Technical Spec
| Flow Range | 0.4-225 L/min |
|---|---|
| Input power | 4.5 to 24 Vdc, (24Vdc Regulated Supply for RFA |
| Output signal | 4.5 to 24 Vdc Pulse, Pulse Rate dependent on Flow |
| Rate, Port size and Range | |
| Body | Polypropylene (Hydrolytically Stable, Glass |
| Reinforced), Stainless steel or Brass |
