Temperature Switch – ATS General Purpose Range

Temperature Switch – ATS General Purpose Range
Download PDF of Tech Data

Applications Engineering Ltd introduces the ATS as an affordable general purpose temperature switch suitable for a wide range of applications.

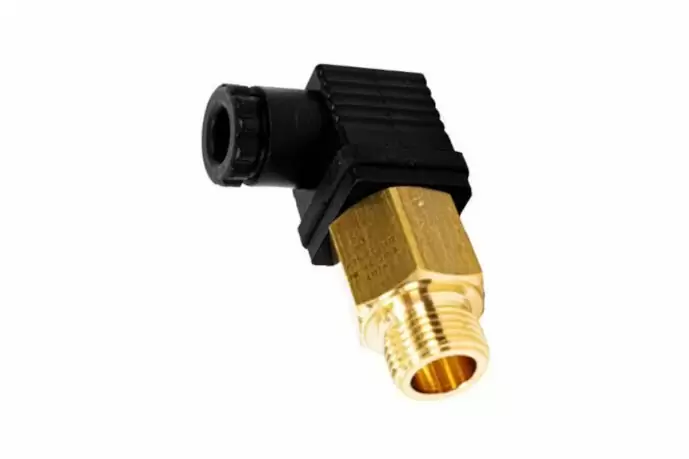

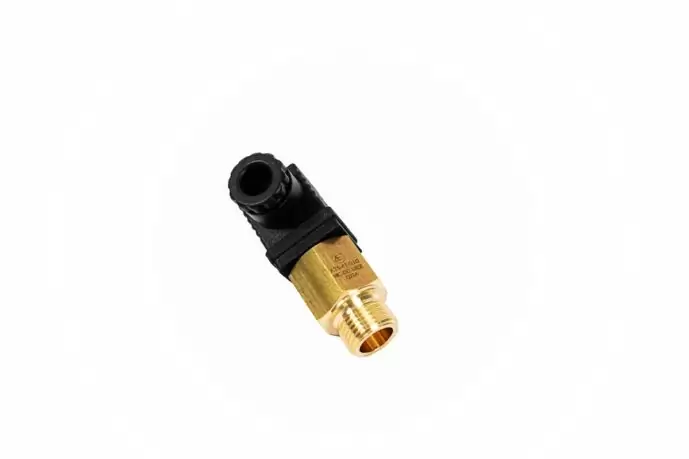

The ATS temperature switch is available as standard with a brass body and 1/2″BSP male thread with a choice of either spade terminals or DIN 43650A connector plug. Standard set points start at 40°C and rise in 10°C increments to 90°C although other switch points are available upon request but may be subject to a minimum order quantity.

As with all of our ranges, we are happy to look at special customer requirements such as thread types, electrical connections and body materials, so if you can’t see what you are looking for within the data sheet then please give us a call to discuss your project.







Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

Body Material Brass (standard)
Thread Size 1/2"BSP (standard)
Electrical Connection Spade terminals or DIN 43650A
Switch Point 40°C, 50°C, 60°C, 70°C, 80°C or 90°C (standard)
Switch Type SPST

Related Categories

  • Temperature Switches

Advantages

  • Extremely cost effective
  • Available in many different forms
  • Manufactured in Italy

Applications

  • Any general purpose temperature requirement
