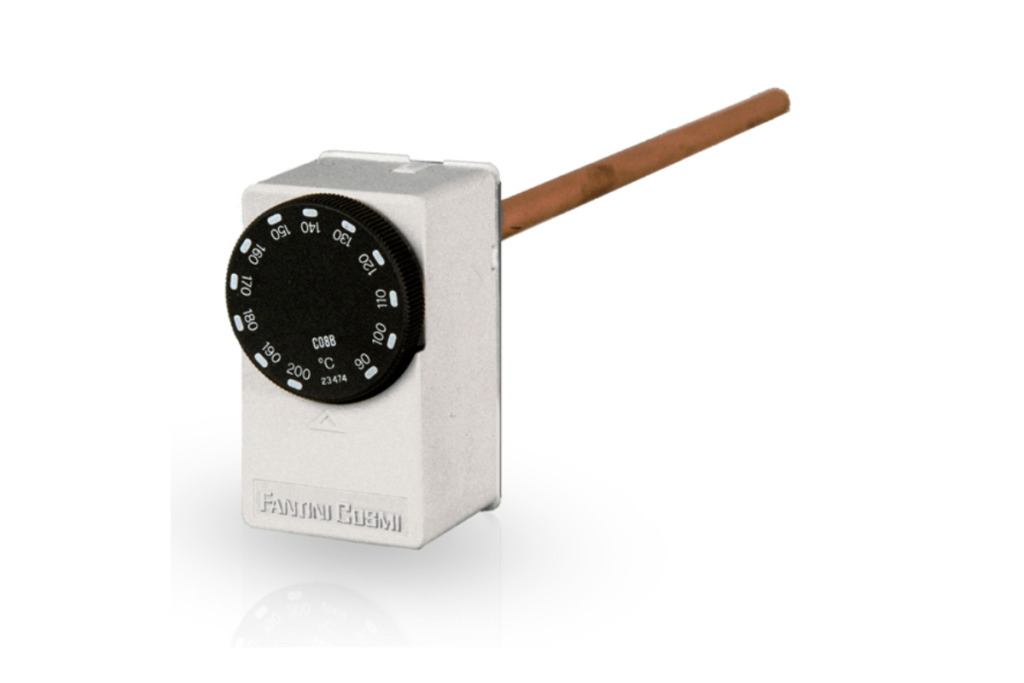

Temperature Switch – ATS-C08A/B Adjustable Thermostat Type
Adjustable temperature switch with dial for direct mounting on the pipeline, supplied with special casing for immersion into the controlled liquid. Suitable for boilers, heating systems, circulation pumps, burners, air heaters.
Technical Spec
| Range | |
|---|---|
| ATS-C08A | 0 to 110°C |
| ATS-C08B | 90 to 200°C |
| Protection | IP40 |
| Operating nominal current | 250V~-15A Res/2,5A Ind |
| Snap action SPDT microswitch with with AGcdO contacts | |
| Connection | 3/8"BSPT |
