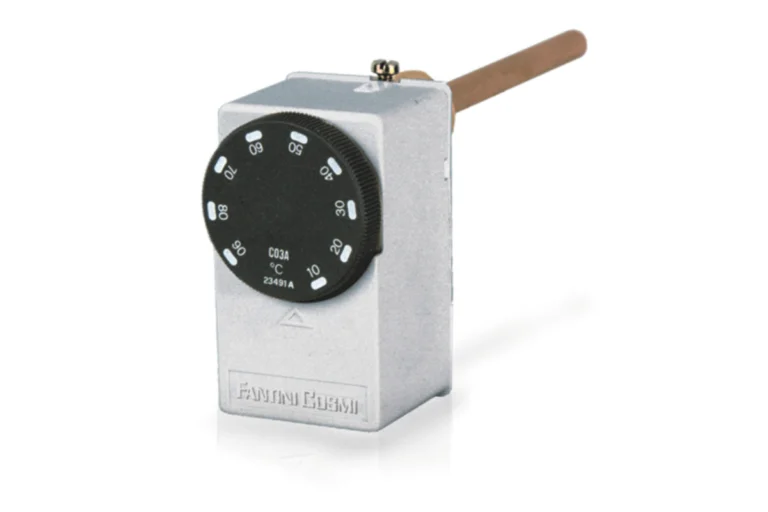

ATS-C03A/B – Adjustable Thermostat Temperature Switch
Adjustable temperature switch with dial for direct mounting on the pipeline, supplied with special casing for immersion into the controlled liquid. Suitable for boilers, heating systems, circulation pumps, burners, air heaters.
Request a QuoteRange
ATS-C03A
10 to 90°C
ATS-C03B
40 to 120°C
Max element Temperature
150°C
Protection
IP40
Operating nominal current
250V~-10A Res/2.5A Ind
Snap action SPDT microswitch with AgCdO contacts
Connection
1/2"BSPT
