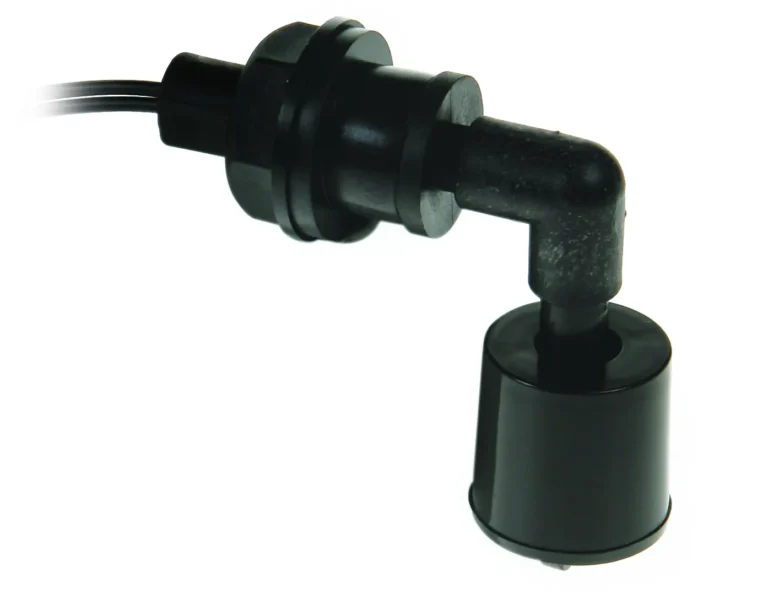

RF-OH61 – Plastic Horizontally Mounted 90° Level Switch

Model: RF-OH61

This polypropylene level switch is horizontally mounted to give either a high level or low level signal and is reversible meaning that it can be either normally open or normally closed.

The switch comes with 300mm leads but can be made with various lead or cable lengths (please get in touch with your requirements, minimum order quantities may apply).

Principle

When the magnetic field of permanent magnet inside the float is moved into to the proximity of the reed switch inside the stationary stem, the reed switch “snaps” the contact together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is open.

Product Code

RF-OH61

This product is not available for online purchase. Please use the "Get a Quote" button below to enquire.

Request a Quote

Product: RF-OH61 - Plastic Horizontally Mounted 90° Level Switch (SKU: RF-OH61)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Technical Specification
Switch rating

240 VAC/ 200 VDC @ 0.5A

Switching Current Max.

0.5A

Wetted parts

PP

Electrical termination

Lead wire ( standard 300 mm )

Specific gravity

0.7

Max pressure

4 Kg/cm2

Weight; Approximate

31 g

Mounting Thread

M16
