Radar Level Transmitter – JFR Series

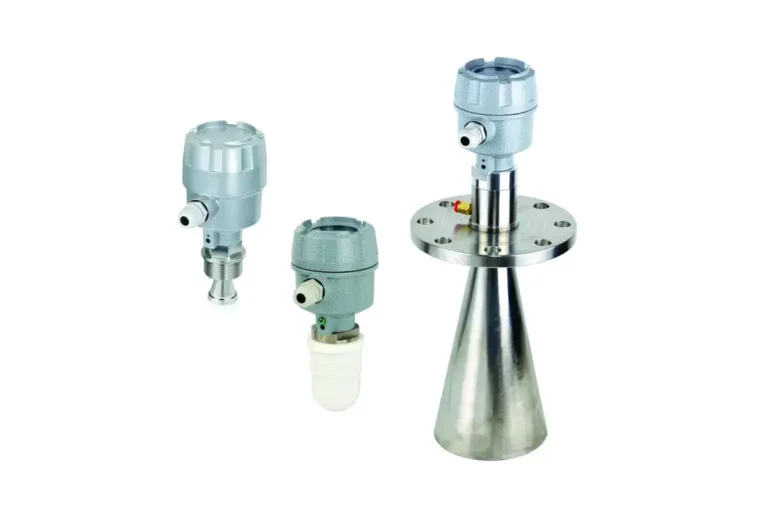

Radar Level Transmitter – JFR Series
Download PDF of Tech Data

The JFR series FMCW radar level transmitter is a non contact measuring device, which is suitable for high temperature, high pressure, and corrosive applications. It is easy to install and free of maintenance, especially for the high accuracy requirement environment.

The JFR series FMCW radar adopts a high frequency signal, which is emitted via an antenna and swipe frequency increment by 0.5GHz during the measurement, reflected by the target surface and received at a time delay. The frequency difference, which is calculated from the transmitting frequency and the received frequency, which is directly proportional to the measured distance (or material surface). The frequency difference then is processed by Fast Fourier Transformation (FFT) to identify the signal in Intermedium Frequency (IF). This FMCW radar is innate with signal / noise enhancement and filtering of echo-back via Phase-Lock Loop (PLL) circuit that is the best solution for complex environment and high accuracy measurement.

JFR

Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

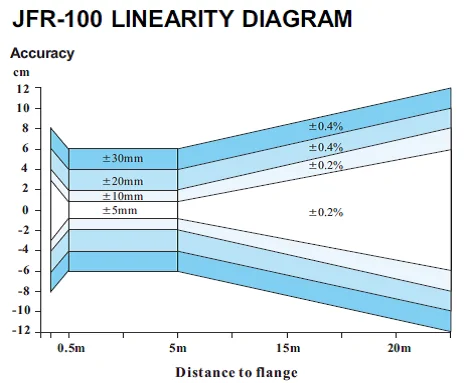

Technical Spec

Antenna Type Horn or wave stick
Maximum Range 40m dependant on type
Materials 304 or 316 stainless steel or PTFE
Sampling Rate 1 Second
Frequency X band
Power Supply 24Vdc
Local Display 5 digit LCM
Output 4-20mA

Related Categories

  • Level Sensors
  • Level Switches and Sensors

Advantages

  • Non contact measurement for difficult media
  • LCD display and user friendly calibration
  • Measuring range 0.5 to 40m
  • ATEX versions available

Applications

  • High pressure and high temperature applications
  • High viscosity applications
  • Dusty environments

Related Products

  • EB RF- Capacitance Level Transmitter
    Capacitance Level Transmitter – EB RF Series
    Sika ModulSensor Level
    Level Sensor – ModulSensor Range
    Magnetostrictive Level Transmitter – EG Series
    Magnetostrictive Level Transmitter – EG Series
    Vibrating Fork Level Switches – SC Range
    Vibrating Fork Level Switches – SC Range
    ATEX Exd Pressure Transducer – 31EA/32EA Explosion Proof
    ATEX Exd Pressure Transducer – 31EA/32EA Explosion Proof
  • Optical Level Switch – ELS-1200
    Optical Level Switch – ELS-1200
