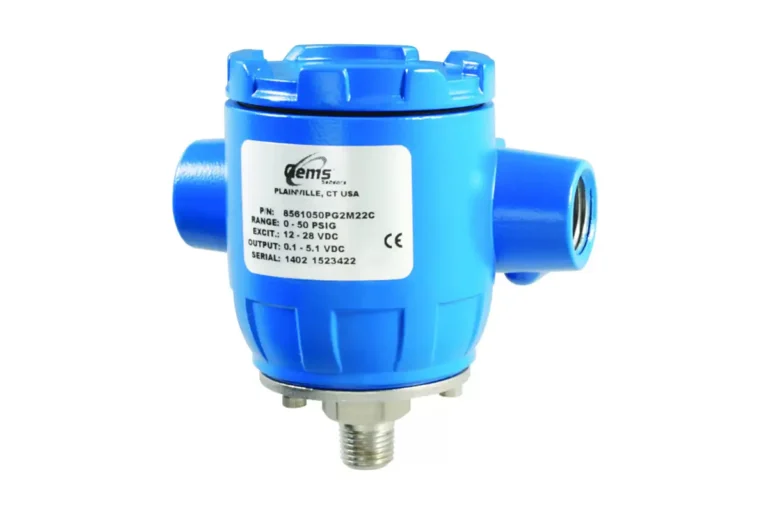

Pressure Transducer – 856 Series
The 856 series pressure transducer is specifically designed for NEMA 4/IP65 service and features a die-cast aluminum enclosure. Their robust capacitive design is resistant to environmental effects, such as shock, vibration, temperature and EMI/RFI. A 17-4 PH stainless steel sensing element does not require isolation from a corrosive media. A ½” threaded conduit is provided for electrical termination and a removable cover provides easy access to the internal wiring terminal strip.
Technical Spec
| Ranges | 0-2 psi to 0-700 bar |
|---|---|
| Input | 9-30Vdc |
| Output | 0.1-5.1 VDC (3 wire) |
| 4-20 mA (2 wire) | |
| Pressure Port | 1/4˝ NPT, 1/2˝ NPT, 1/4˝ NPTF or 1/8˝ NPTM |
| Enclosure | Die cast aluminium, NEMA 4/IP65 |
Advantages
- 0-2 to 0-10000 psi ranges
- Voltage or current output
- NEMA 4/IP65 enclosure
- Zero and span adjustments
Applications
- Process Control
- Chemical Processing
- Agricultural Irrigation
- Natural Gas Pipeline
- Grain Processing
- Industrial Pressure Monitoring
