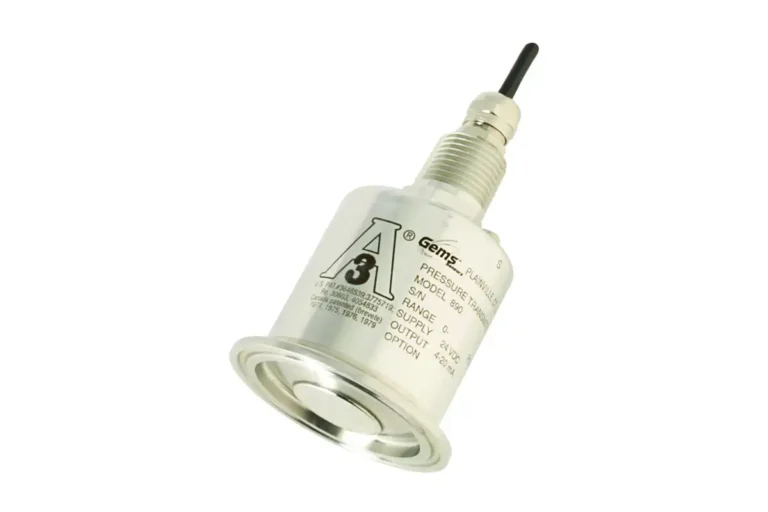

Sanitary Pressure Transducer – 290 Series
The 290 series meets 3A sanitary design standards and is fully sealed to withstand external high pressure washdowns. These units are packaged in rugged welded stainless steel housings and are exceptionally insensitive to vibration, shock and environmental extremes. A small size and tri-clover sanitary pressure fitting allow direct mounting in most CIP and SIP installations. Other features include IC-based circuitry, a 1/2” NPT conduit fitting and shielded cable with vent tube. Sealed screws provide access to zero and span adjustments.
Technical Spec
| Fitting | 1.5” or 2" Tri-Clover Sanitary Fitting |
|---|---|
| Ranges | 0-1psi to 0-1000psi |
| Input | 18-38Vdc |
| Output | 4-20mA |
Advantages
- For clean-in-place (CIP) and sterile-in-place (SIP)
- 0.20% full scale accuracy
- No liquid fill diaphragms
Applications
- Food Processing
- Dairy & Beverage Processing
- Pharmaceutical Processing
- Sanitary Pipelines
