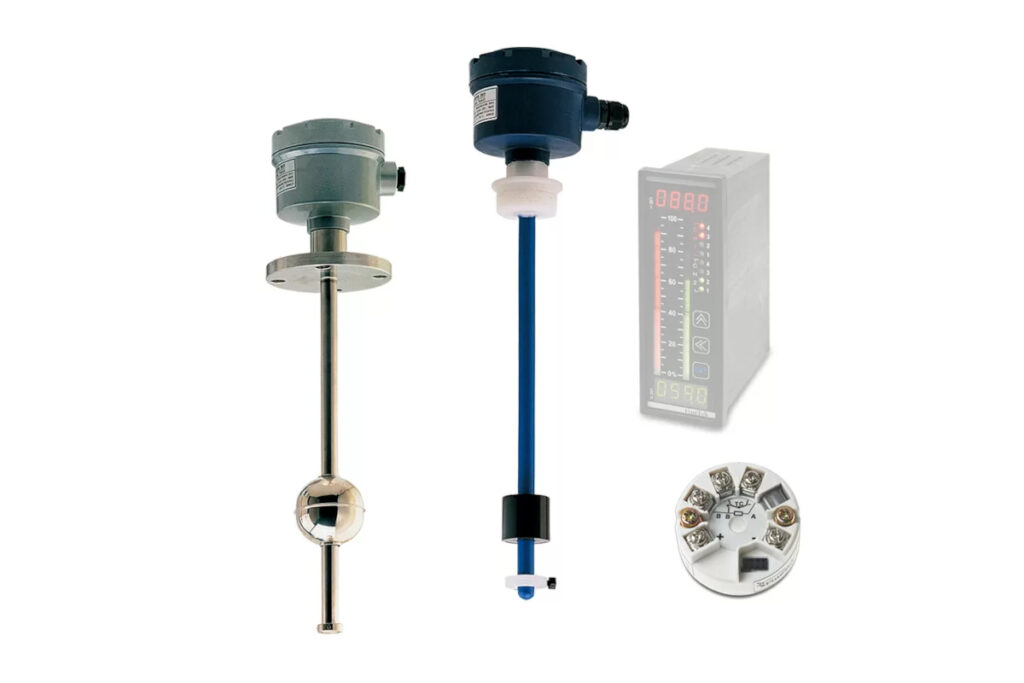

Magnetic Float Level Transmitter – FG Series
Principle

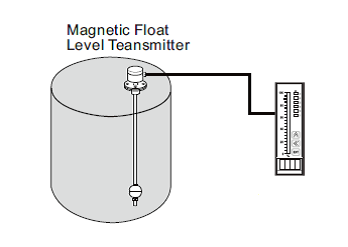

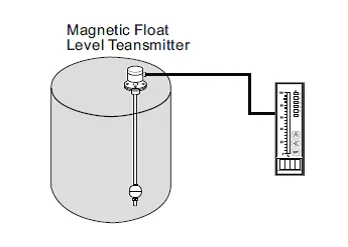

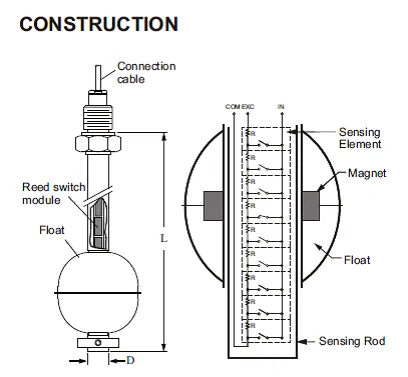

The Magnet Float Level transmitter is composed of the float and sensing rod, as the float is raised or lowered by liquid level, the sensing rod will have a resistance output which is directly proportional to the liquid level. Also, the float level indicator can be equipped with the TAB-1531 transmitter (please see page 3 of manual) to produce a 0/4~20mA signal.
Features
-
Every sensing element is protected by a plastic package, safety in use and transport.
-
High performance and reliability of electric circuit modular designed.
-
Lower installation costs, less maintenance, reduced personnel training, and decreased plant shock down time.
Technical Spec
| Materials | 304 or 316 grade stainless steel |
|---|---|
| PVDF or PP for aggressive media | |
| Fittings | Please consult manual |
| Input voltage | 12-36Vdc |
| output | 0/4-20mA |
| Options | ATEX versions |
| Anti Corrosion Versions | |
| Alarm output versions | |
| Certification | ATEX, DNV, LLoyds Register, Bureau Veritas, ABS, UL |
Related Categories
Advantages
- Many options including materials, threads and fittings and terminal heads
- Atex Exd versions available
- Choice of 6.35mm or 12.7mm resolution
Applications
- Waste water
- Petrochemical industries
- Shipping vessels
