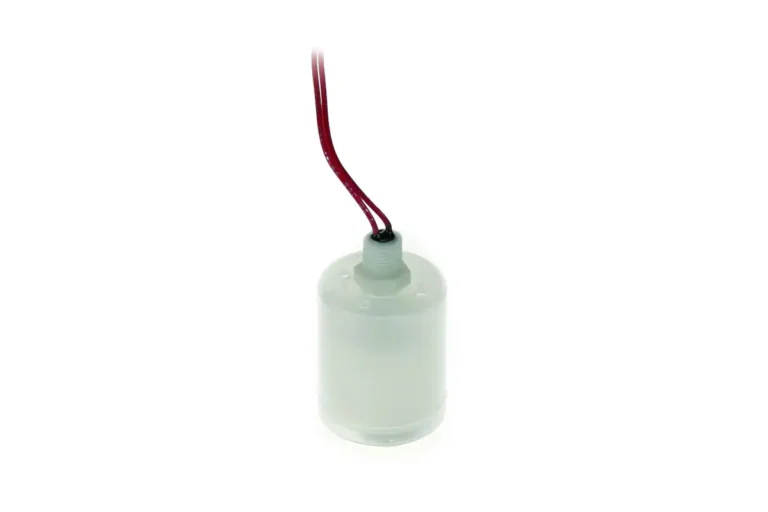

LS3 – Plastic Vertically Mounted Level Switch with Slosh Shield

Compact, all-polypropylene level switch with slosh shield which is ideal for use with turbulent liquids in small tanks. FDA approved materials.

Principle

When the magnetic field of permanent magnet inside the float is moved into to the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.

Request a Quote
Switch rating
20 VA
Electrical contact
SPST
Wetted parts
PP
Electrical connection
60 cm flying leads
Specific gravity
0.9
Max pressure
10 Bar
