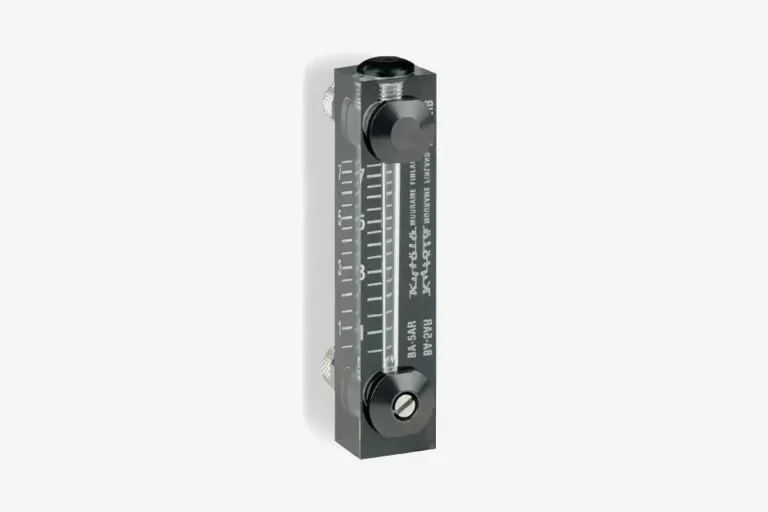

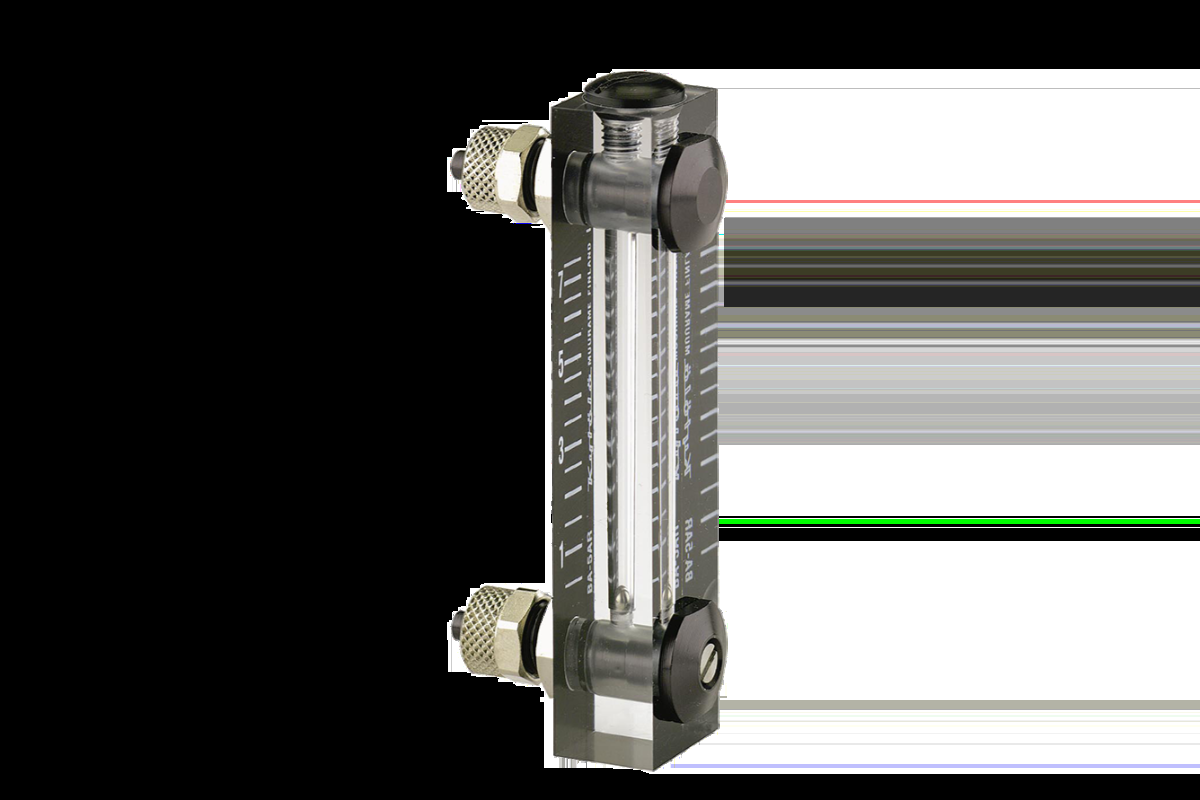

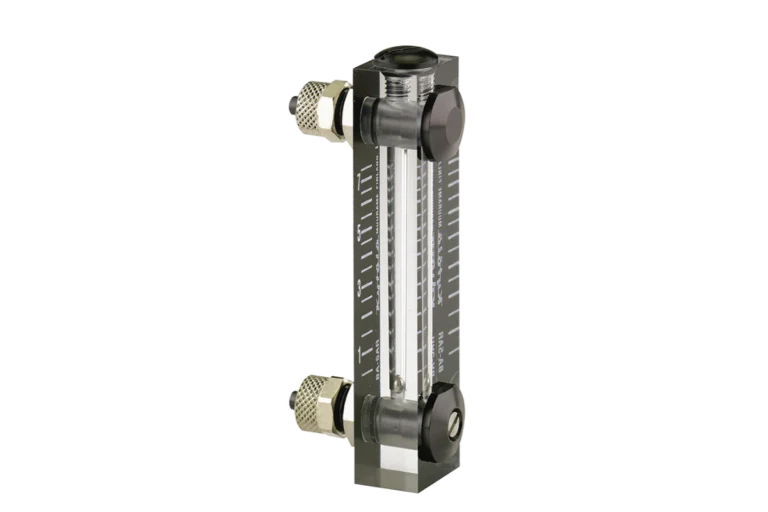

Kytola Variable Area Flow Meter Model BA
The Model BA variable area flow meter by Kytola is specifically designed for monitoring low air flow rates, up to 10 bar. Made from a high-quality acrylic (PMMA) with a durable aluminium housing, the Model BA features a flow adjustment valve and rapid fittings for plastic hoses with a 6mm outer diameter / 4mm inner diameter.
This component is commonly used in differential pressure measurement, analysers and air purging for enclosures.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
* Available as a special construction – please speak to our team to discuss your requirements.
Technical Spec
| Body material | Acrylic (PMMA) |
|---|---|
| Valve | Aluminium housing with AISI 316 spindle |
| Float | AISI 316 |
| Seals | Nitrile, Viton®* or EPDM* |
| Plug | Nylon |
| Weight | 60g |
| Connection | Compression fitting for 6mm o.d. / 4mm i.d. plastic hose |
| Max. pressure | 20 bar |
| Max. temperature | 75°C |
| Accuracy | ±10% (F.S.) |
