Flow Switch – FS-105E Series-Adjustable Type

Flow Switch – FS-105E Series-Adjustable Type
Download PDF of Tech Data

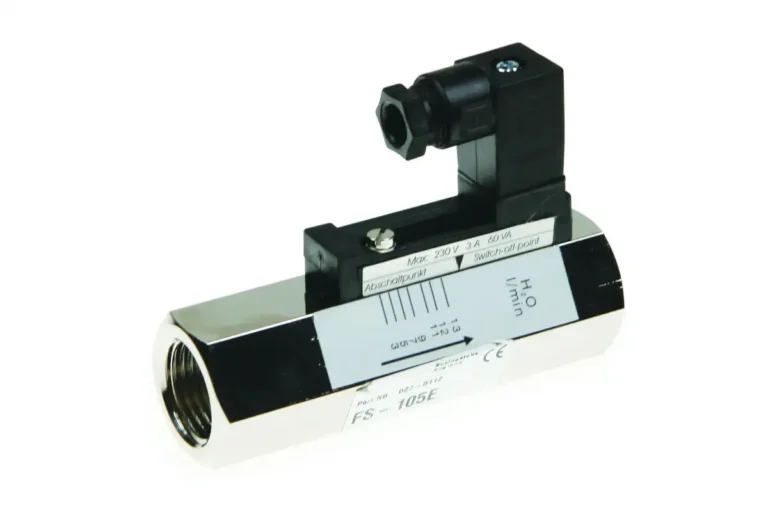

The FS-105E model flow switch operates in any mounting position. It is equipped with a calibrated piston which is displaced by flow to magnetically actuate a sealed hermetic reed switch. When flow decreases a positive spring returns the piston to its prior position and de-actuates the reed switch. The reed switch assembly is movable to allow for customer setting of flow rate within the limits of the switch selected. The adjustment does not effect the flow path, therefore pressure drop is not influenced when changing set-points. Versions are available for Liquid and Gas flow. Robust components allow a pressure of 250 bar, ideally suited for high pressure cleaning and lubrication systems.

Principle

When the magnetic field of permanent magnet inside the shuttle or piston is moved into the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.

Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

Max flow 100% above max. set-point range
Max operating pressure 250 bar
Operating temperature 20° to 120°C
Adjustable ranges 0.005-150 l/min
Mounting orientation Any position
Mountings G1/4, G1/2, G1
Electrical connection Din 43650,
Electrical contact rating NO - 250V, 1A, 100VA - G1 port, SPDT - 250V, 1.5A, SPDT - 200V, 1A 20VA
