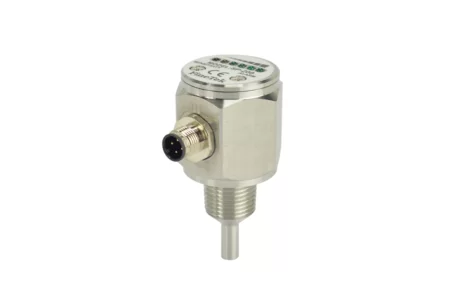

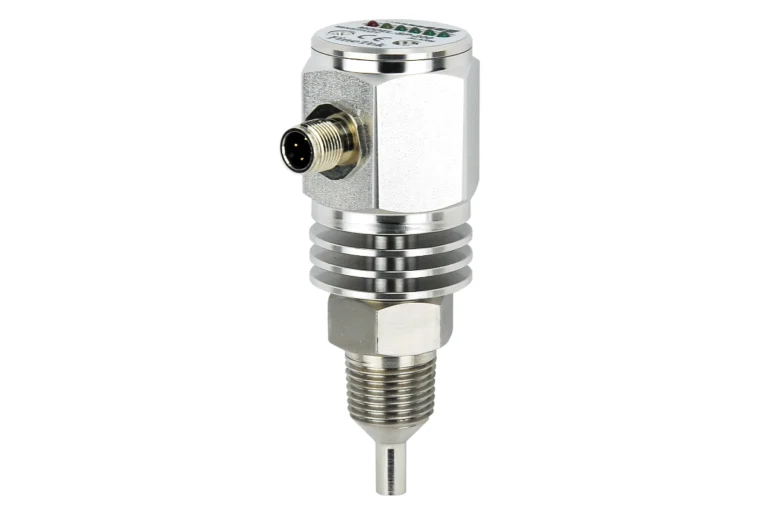

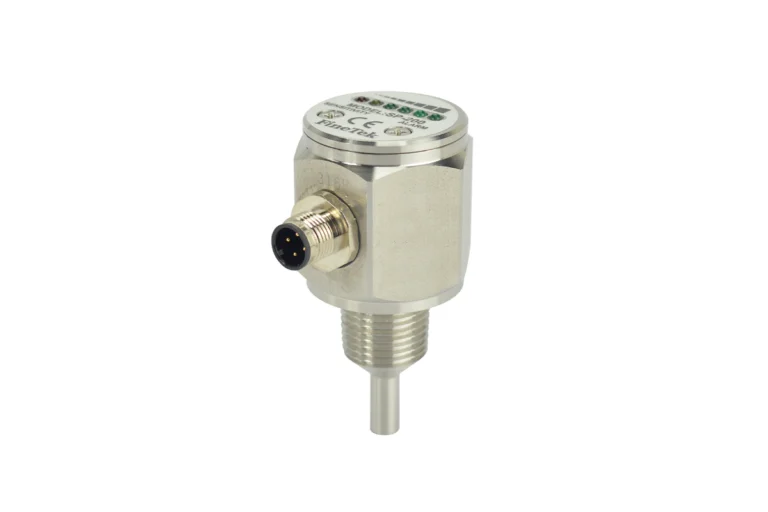

Flow Switch – SP Thermal Dispersion Range
The SP flow switch range is based on the principle of thermal dispersion. A typical configuration uses two temperature detectors set within the tip of the sensor, One detector is heated a few degrees above the other one; as the process medium flows over the tip of the sensor it disperses some of the heat from the heated temperature Detector. The delta temperature is a function of flow velocity and converted into an electronic signal. The open collector changes state once the set point has been reached.
Technical Spec
| Materials | 304, 316 or 316L S/S |
|---|---|
| PC or PVDF | |
| Threads | 1/4", 3/8", 1/2", 3/4" or 1" BSP, NPT, PT or PF |
| Output | NPN or PNP open collector or Relay output (see details) |
| Input | 19~30Vdc |
Advantages
- LED functions Display
- Open collector alarm output
- Relay output
- Measuring Range: (Speed) water: 1~150 cm/s, oil: 3~300 cm/s
- Material : SUS304, 316,316L, PVDF, PC
Applications
- Detection of flow velocities in pipes
