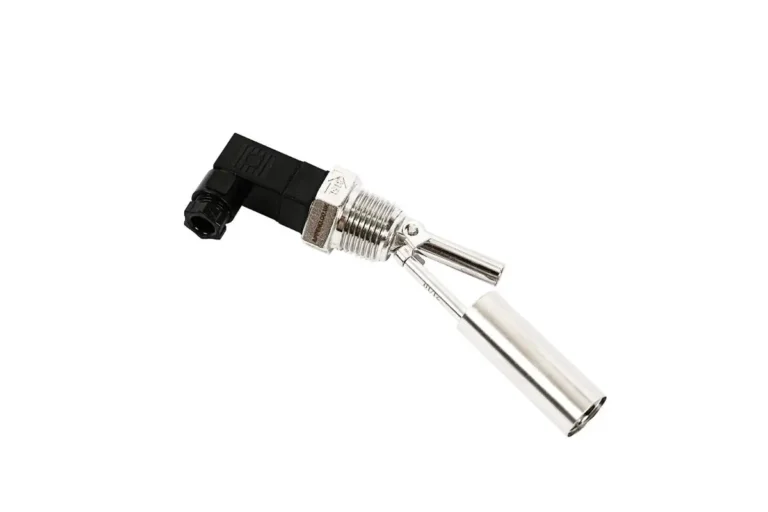

RF-MH50C/56C – Stainless Steel Horizontally Mounted Level Switch

This all stainless steel level switch is horizontally mounted to give either a high level or low level signal and is reversible meaning that it can be either normally open or normally closed. The RF-MH50C has an all 304 grade contruction and the RF-MH56C is constructed from 316 grade stainless steel. The switch comes with mini din connector.


When the magnetic field of permanent magnet inside the float is moved into to the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.

Request a Quote

Operating Temperature
- 20 to + 120 ° C ( 200 ° C Max )
Switch rating
240 VAC/ 200 VDC @ 0.5A
Wetted parts
304 Stainless steel ( 50C ) / 316 Stainless steel ( 56C )
Mounting thread
1/2" BSPT
Electrical termination
Mini Din 43650C
Specific gravity
Max pressure
