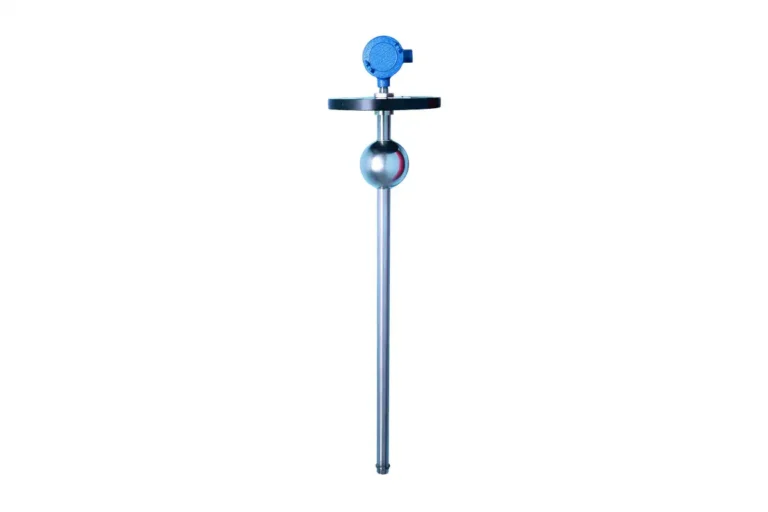

Level Sensor – XM/XT Large Alloy Type
These rugged level sensors are designed for tanks up to 18 feet (5.48 m) in depth. Heavy duty stems resist turbulence, and float options accommodate liquids with minimum specific gravity as low as 0.53. Standard resolution is 1/2 inch (13 mm); higher resolutions are available on request.
Technical Spec
Mounting | XM/XT-66400 : 4" NPT |
---|---|
XM/XT-36490: 5" ANSI Flange | |
Mounting material | 316 S/S or Carbon steel |
Supply voltage/output | XM series : 10 to 30Vdc with proportional voltage output |
XT series : 8 to 24Vdc with 0-5V output | |
15 to 30Vdc with 0-12V output | |
10 to 40Vdc with 4-20mA output |
