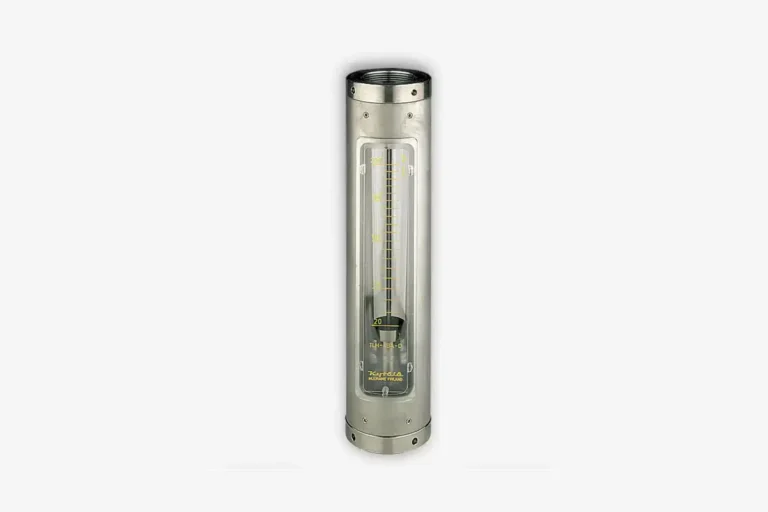

Kytola Variable Area Flow Meter Model TL
The Model TL flow meter from Kytola is a robust, industrial instrument designed for heavy-duty applications such as lubrication oil measurement, flush water applications, gas flow measurement and sealing water measurement for vacuum pumps. The polymer tube is protected by a stainless steel casing, offering reliable long-term use.
Contact our team on +44(0)1825 764737 to place an order.
For a full overview of the technical specifications please click here.
Technical Spec

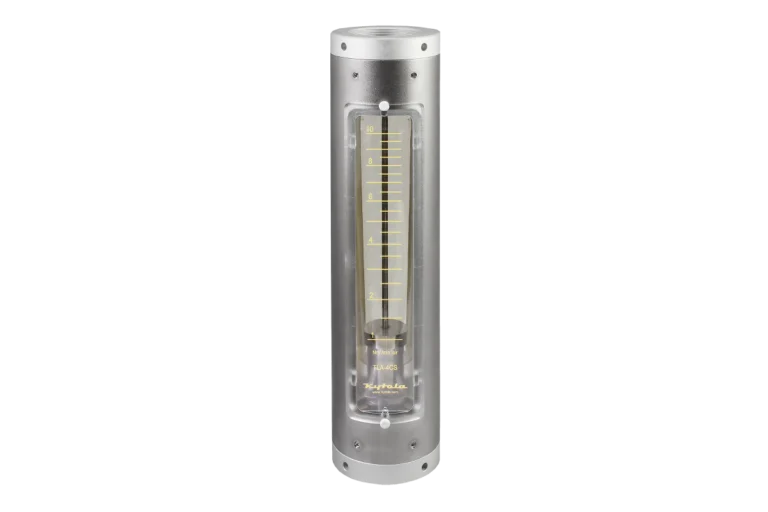

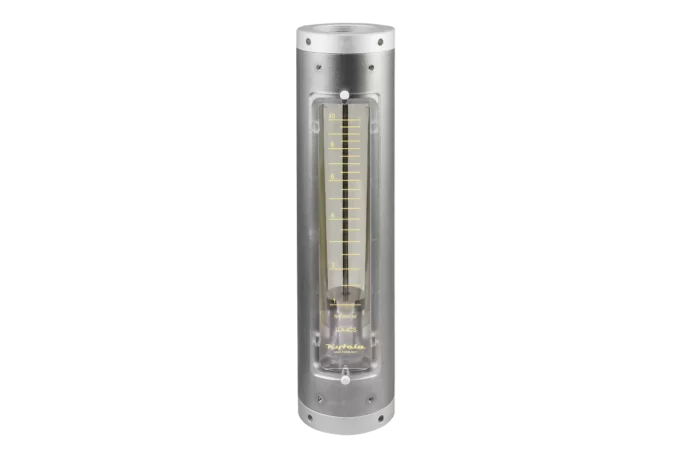

| TLA | TLH | TLFH | |
|---|---|---|---|
| Tube Material | Grilamid (PA-12) or PES* | Grilamid (PA-12) or PES* | Grilamid (PA-12) or PES* |
| Casing | AISI 316 | AISI 316 | AISI 316 |
| Connectors | Aluminium | AISI 316 | AISI 316 |
| Float | AISI 329 or PTFE | AISI 329 or PTFE | AISI 329 or PTFE |
| Seals | Nitrile, Viton®* or EPDM* | Nitrile, Viton®* or EPDM* | Nitrile, Viton®* or EPDM* |
| Weight | 3.3kg | 4.5kg | 6.6kg |
| Connection | BSP 2″ / NPT 2″ | BSP 2″ / NPT 2″ | DN 50 / ANSI 2″ |
| Max. pressure | 20 bar | 20 bar) | 16 bar |
| Max. temperature | 80°C / 120°C* | 80°C / 120°C* | 80°C / 120°C* |
| Accuracy | ±5% F.S. (H2O, +20°C) | ±5% F.S. (H2O, +20°C) | ±5% F.S. (H2O, +20°C) |
| * Available as a special construction – please speak to our team to discuss your requirements. | |||
