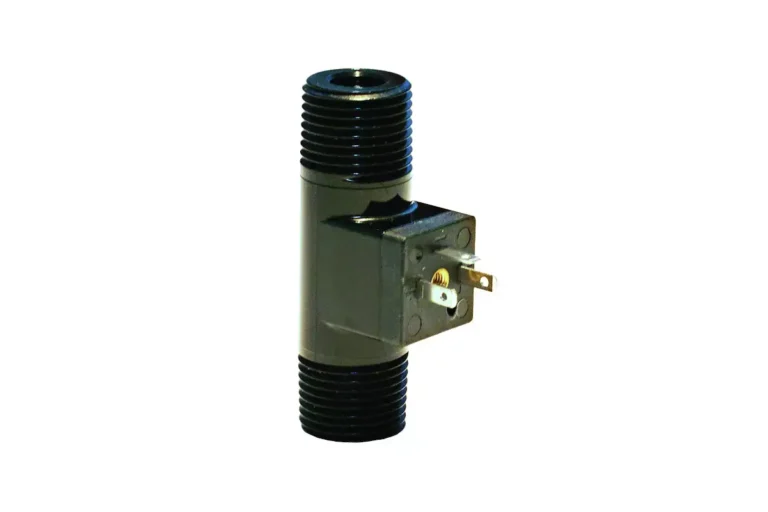

Flow Sensor – FT-110 Series
The FT-110 hall effect turbine flow sensor is ideal for OEM applications involving low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal candidate for replacing dispensing timer systems. Unlike timing systems, turbine technology is not influenced by changes in system pressure caused by aging filters. The sensor’s standard power and output specifications make it easy to retrofit to existing controllers.
Technical Spec
| Flow range | 0.5-30 L/min |
|---|---|
| Input Power | 5-24Vdc |
| Output | NPN Sinking Open Collector @ 50mA Maximum (1 to 2.2K Ohm Pull-Up Resistor Required) (Hz Output) |
| Max Operating Pressure | 14 Bar |
| Burst Pressure | 170 Bar |
| Connections | 3/8” NPT Male or G 3/8” Male |
| Body | Nylon 12 |
