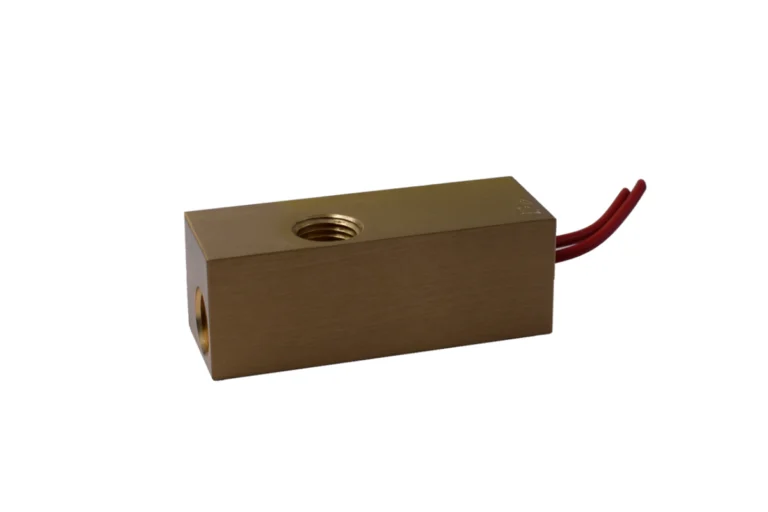

Flow Switch – FS-927 Series
Measuring only 1″ x 2-3/4″ (25 mm-70 mm), this compact flow switch is ideal for use where space is at a premium. Designed for use with water and oil, these switches are suitable for high volume OEM applications. They are ideal for coolant or lubricant flow monitoring in portable equipment and many other applications with space constraints.
Applications:
- Electronic Equipment: Laser Heads, Welders, Power Supplies, High Speed Spindles, X-Ray Tubes, Semiconductor Equipment
- Bearings or Gears: Presses, Rotating Equipment, Conveyors, Machine Tools, Robotics
- Processing & Dispensing Equipment: Water Purifications and Filtering, X-Ray Film Processing, Beverage Dispensing, Chemical Additives, Gas Sampling, Distilling.
Principle
When the magnetic field of permanent magnet inside the shuttle or piston is moved into the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.
Technical Spec
| Flow Rate Settings | 0.10 GPM to 1.50 GPM (0.4 LPM to 6 LPM) |
|---|---|
| Port Size | 1/4" NPT |
| Primary Construction Material | Brass |
| Setting Type | Fixed |
