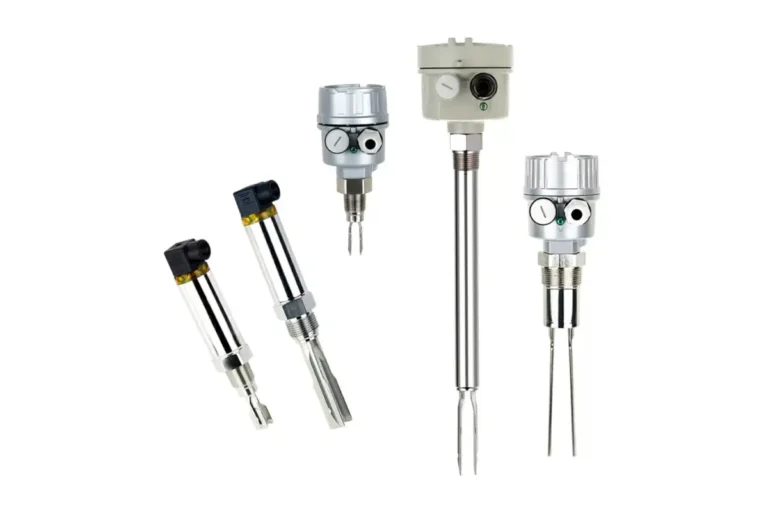

Vibrating Fork Level Switch – SC1740/1741 With ATEX Explosion Proof Enclosure

Vibrating Fork Level Switch – SC1740/1741 With ATEX Explosion Proof Enclosure
Download PDF of Tech Data

ATEX certified vibrating fork type level switch with explosion proof enclosure.

The SC 1740/1741 ATEX certified vibrating fork level switch operates by using two piezoelectric elements built in to a vibration tube. The first piezoelectric element is triggered by pulse signal that is created from the circuit to transport vibration energy out, and the other piezoelectric element receives the vibration and transmits it to output electric signal. While the probe is in contact with material it will cause the frequency change of the output signal and will cause the unit to switch. Vibrating fork level switches provide reliable and maintenance free monitoring of  bulk solids and liquids alike.

Features

  • Sturdy and durable design. No calibration needed.
  • designed to avoid the accumulation of material on probe.
  • High / Low fail safe modes
  • Field-operatable in sensitivity adjustment to fit versatile density of material.
Applications Engineering Experts Banner
If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

Materials 316L
Connection
SC1740 1"PT
SC1741 1 1/4"PT
Certification Level EX II 2G EEx d IIB T3-T6 (updated 2009)

Related Categories

  • ATEX Level Switches
Gallery image
