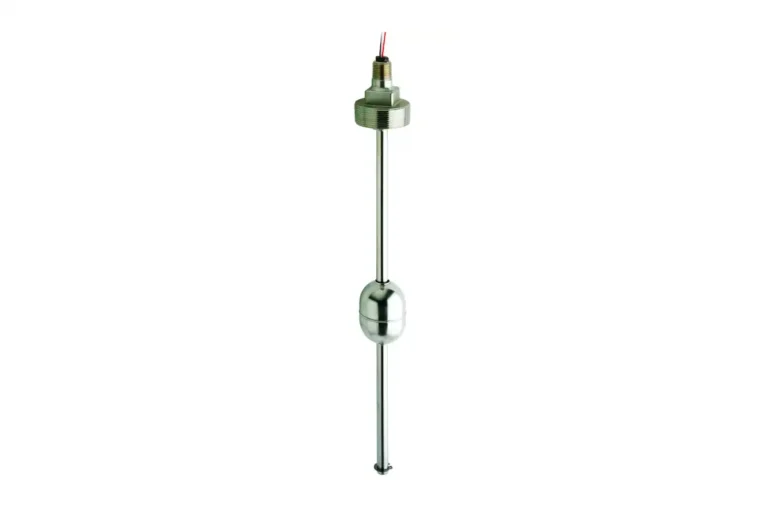

Level Sensor – XM/XT – 800 Series Small Alloy
These compact level sensors feature the rugged durability of stainless steel or brass construction. The XM-800 series provides analog output, and can be combined with Gems™ Digital Bargraph Display and level cube receivers.
Completely electronic, Gems liquid level transmitters provide reliable and durable remote tank gauging. A wide variety of material combinations provide compatibility for most small to mid-size tanks in both process and OEM applications; for deeper tanks up to 18 feet (5.48 m) look to Gems 36000 and 66000 Series.
Technical Spec
| Mounting | 1/2", 1 1/4" or 2" NPT 3" Ansi or 2 1/2" Sanitary Flange |
|---|---|
| Mounting material | 316 S/S, Brass or Carbon steel |
| Supply voltage/output | XM series : 10 to 30Vdc with proportional voltage output |
| XT series : 8 to 24Vdc with 0-5V output | |
| 15 to 30Vdc with 0-12V output | |
| 10 to 40Vdc with 4-20mA output |
