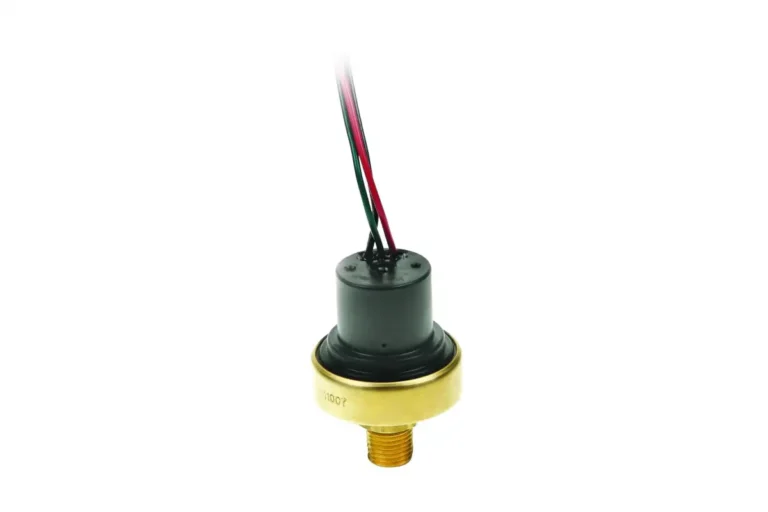

PS11 – Adjustable Low Pressure Switch

Model: PS11

For low pressure applications, the longevity of our PS11 Series pressure switch is hard to beat. A life expectancy of 1 million cycles means long-term reliability. Their snap-action microswitch resets automatically and meets or exceeds industry standards. The brass housing offers chemical resistance at an affordable price.

Download Product Technical Specification

Product Code

PS11

This product is not available for online purchase.
Please use the "Get a Quote" button below to enquire.

Request a Quote

Product: PS11 - Adjustable Low Pressure Switch (SKU: PS11)

"*" indicates required fields

Categories

Pressure Switches

Single Pole Double Throw Pressure Switches

Technical Specification: Pressure Range
1 – 4 psi (68.9 – 275.8 mBar) or 3.5 – 12 psi (241.3 – 827.4 mBar)
Switch rating
5 Amp @ 12/24Vdc and 125/250Vac
Diaphragm
Nitrile (Standard), EPDM, Viton ® or Kapton ® (option)
Fitting
Brass
Proof pressure
150 psi (10.3 Bar)
Downloads: Product Datasheet

View Download

×
