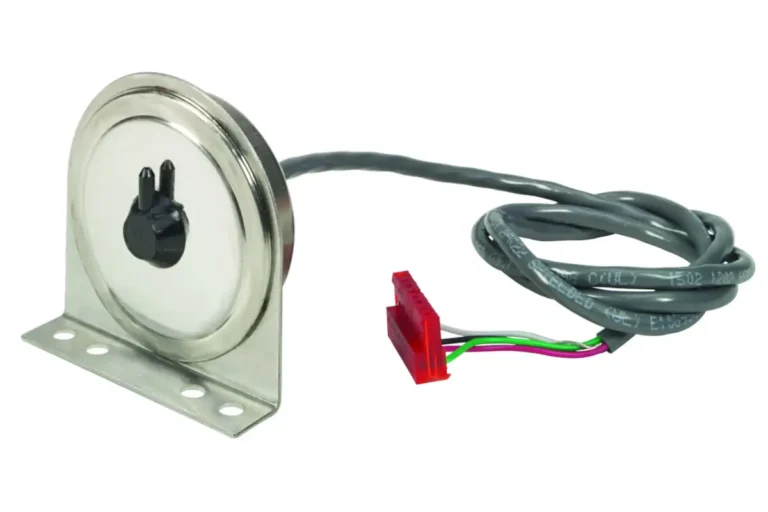

Pressure Transducer – 276 Series

Pressure Transducer – 276 Series
Download PDF of Tech Data

The 276 series pressure transducer features an extremely accurate and stable ceramic sensor to deliver a great value in environmental pressure measurement. Gems’™ glass-fused ceramic capacitive sensing capsule offers inherent thermal stability and low hysteresis in a proven, simple design. A custom ASIC used in the 276 series achieves long-term stability and high accuracy, and its low power requirements (as low as 5 Vdc) allow the sensor to operate in remote battery or solar powered applications. An integrated mounting bracket and 1/8″ tube pressure connection ease installation.



If you have questions about our products, or their applications...
Why not give our friendly team of experts a call now?

Technical Spec

Excitation Voltage 5, 12 or 24Vdc
Output (3-wire) 0.1-5.1 VDC or 0.5-4.5 VDC
Electrical Connection 2 ft. Multiconductor Cable
Enclosure Stainless Steel with Mounting Bracket
Operating Temperatures 0°F to +175°F (-18°C to +79°C)
Pressure Port 1/8˝ Tube Fitting

Applications

  • Environmental Monitoring Systems
  • Weather Measurement Systems
  • Weather and Environmental Data Logging
  • Barometric Pressure Compensation for Internal Combustion Engine Performance
  • Clean-room Barometric Pressure Compensation
  • Automotive Emissions Test Equipment

Related Products

  • Pressure Transducer – 5266 Series
    Pressure Transducer – 265 Series
    Sanitary Pressure Transducer – 290 Series
    Pressure Transducer – 856 Series
    Pressure Transducer – 5000 Low Range Series
