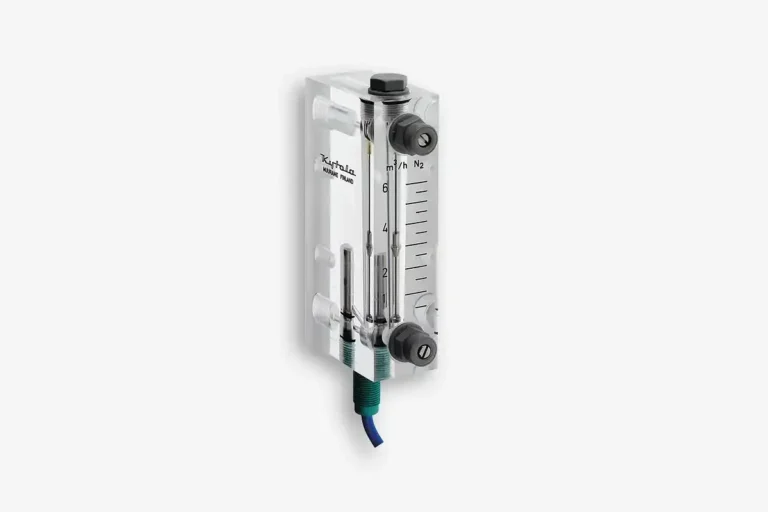

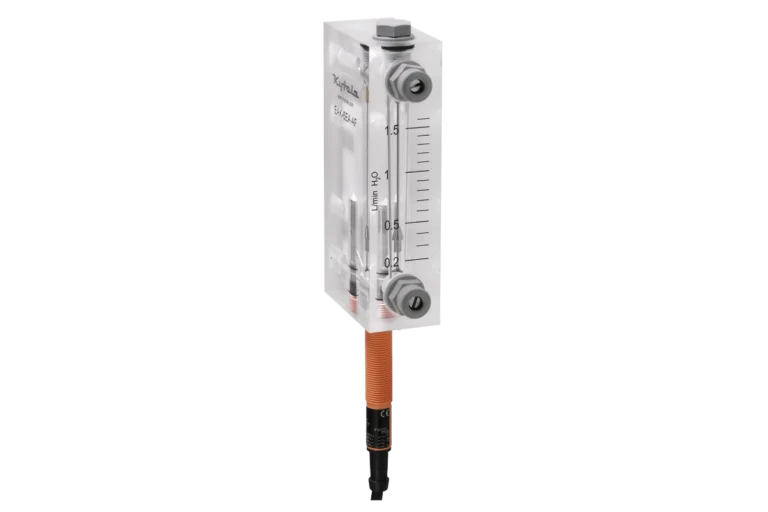

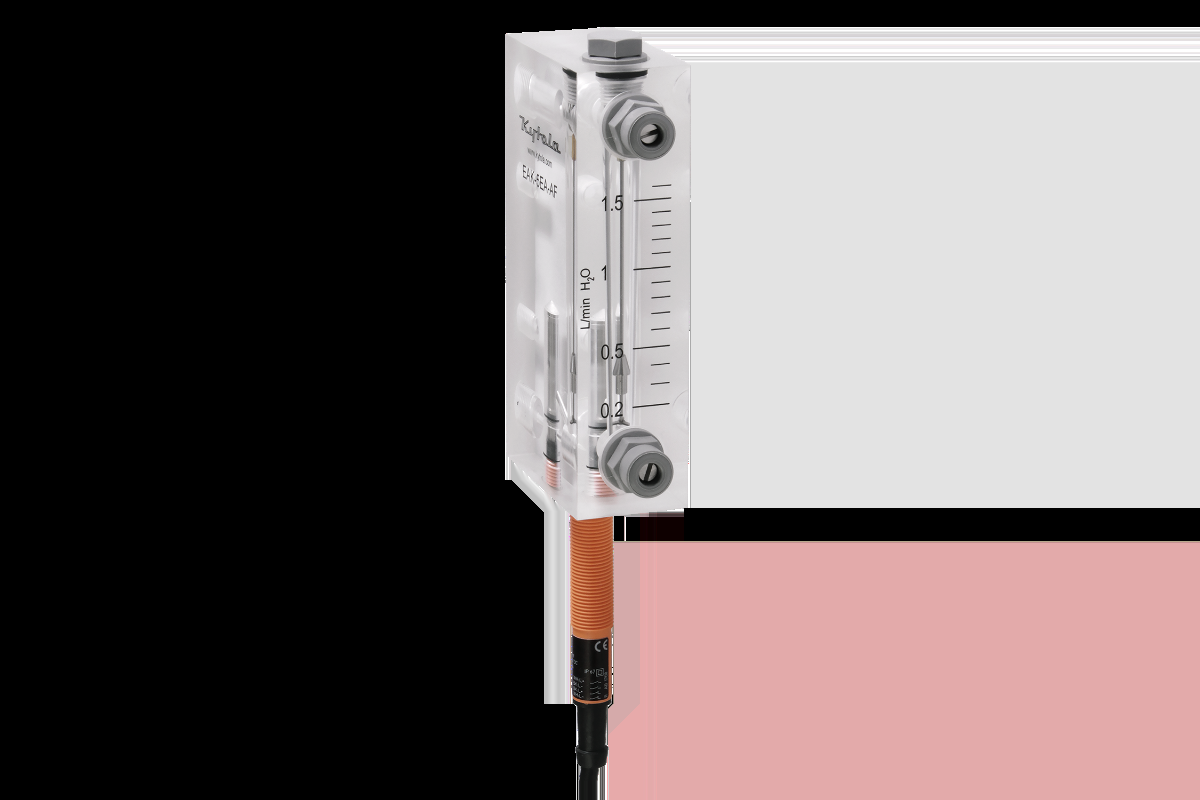

EA – Kytola Variable Area Flow Meter

Model: EA

The Kytola Model EA variable area flow meter features an adjustable flow alarm and is specifically designed for liquid and gas applications where continuous flow control is essential. The clear scale on the unit’s machined acrylic body makes it easy to take accurate measurements, and the adjustable flow rate makes it suitable for a range of applications.

The Model EA is suited for use in automatic welding lines, heat treatment ovens and similar applications. For special constructions, please get in touch with our team to discuss your requirements.

* Available as a special construction – please speak to our team to discuss your requirements.

Product Code

EA

This product is not available for online purchase. Please use the "Get a Quote" button below to enquire.

Request a Quote

Product: EA - Kytola Variable Area Flow Meter (SKU: EA)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Technical Specification
Body material

Acrylic (PMMA)

Valves

Nylon or AISI 316 housings/plugs; AISI 316 spindle

Nylon or AISI 316 housings/plugs; AISI 316 spindle

Nitrile, Viton®* or EPDM*

Alarm float

AISI 316

Weight

360g

Connection

BSP ¼" – thread adapters are required for NPT connections

Max. pressure

10 bar

Max. temperature

75°C

Accuracy

±5% F.S. (H2O, +20°C)
