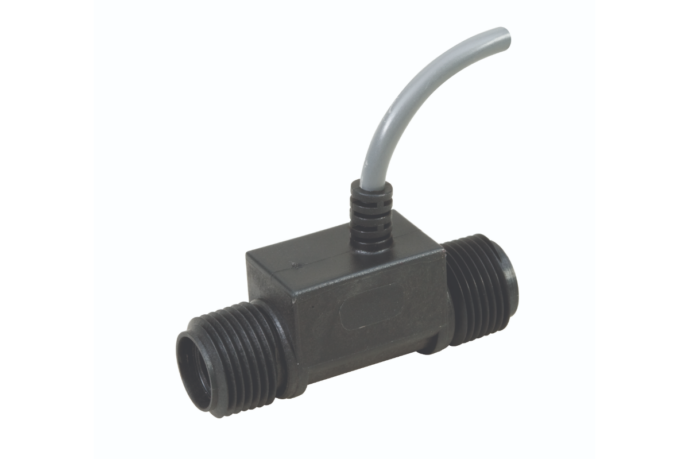

Flow Sensor – FT-330 Series 0.8-15 LPM
The FT-330 is highly accurate and repeatable, Hall Effect turbine flow sensor designed for low flow OEM applications. This low cost, NSF Std. 61 listed flow sensor is ideal for water or beverage dispensing applications or any application with water based liquids. The 316SS shaft coupled with Delrin bearings allows for accurate measurements during quick dispensing cycles. The sensor’s standard power and output specifications make it easy to retrofit existing controllers.
Technical Spec
| Flow Ranges | 0.8-7.6 LPM or 1.5-15 LPM |
|---|---|
| Input Power | 5 to 24Vdc |
| Output | NPN Sinking Open Collector @ 25mA (5k to 30K Pull-Up Resistor Required) |
| Max Operating Pressure | 200 PSI |
| Burst Pressure | 1000 PSI |
| Connection | 3/8 NPT |
| Body Material | Glass Reinforced PPO (Noryl) |
