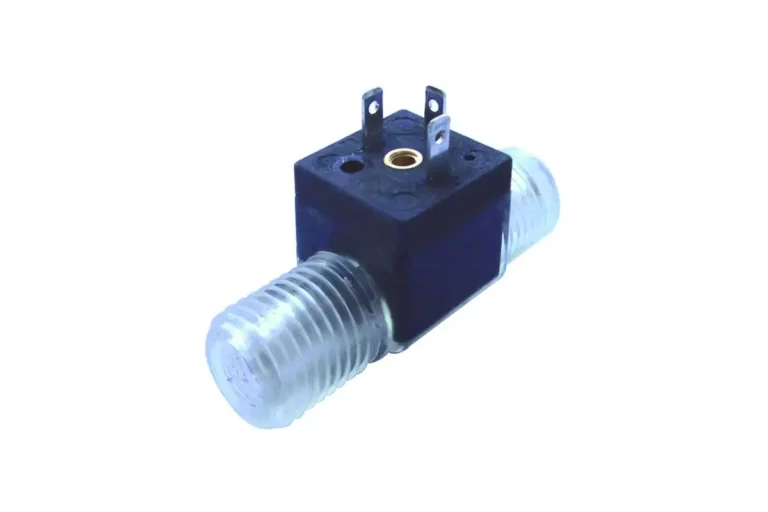

Flow Sensor – FT-210 Series
The FT-210 flow sensor features proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatable sensor ideally suited for measurement of either volume dispensing and/or flow rate applications. The small turbine reacts quickly to on/off dispensing applications. Each sensor is 100% tested, ensuring years of service life. Units are available in Grivory for use in methanol/ethanol.
Technical Spec
| Flow Range | 0.1-2.5 litres/minute |
|---|---|
| Input Power | 5-24Vdc |
| Output (Hz) | NPN Sinking Open Collector @ 20mA Maximum (1 to 2.2K Ohm Pull-Up resistor required) (Hz Output) |
| Max Pressure | 25 Bar |
| Burst Pressure | 200 Bar |
| Connection | 1/4" NPT or 1/4" G Male also available |
| Housing | Nylon 12 (Grilamid TR55) |
