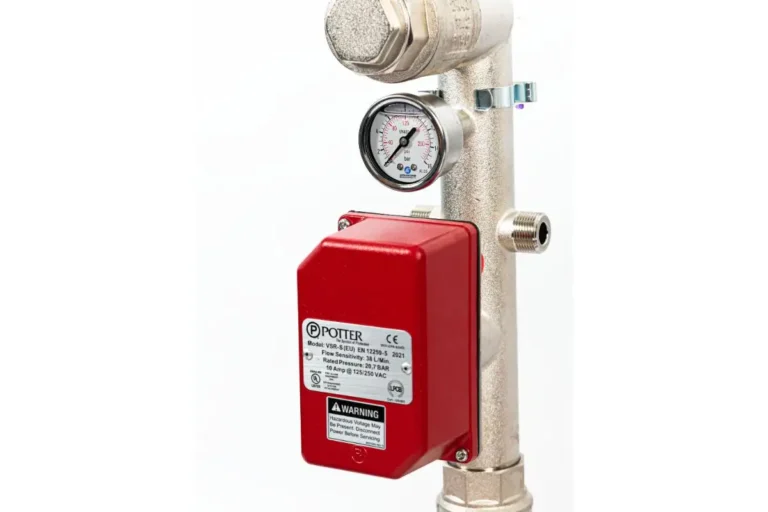

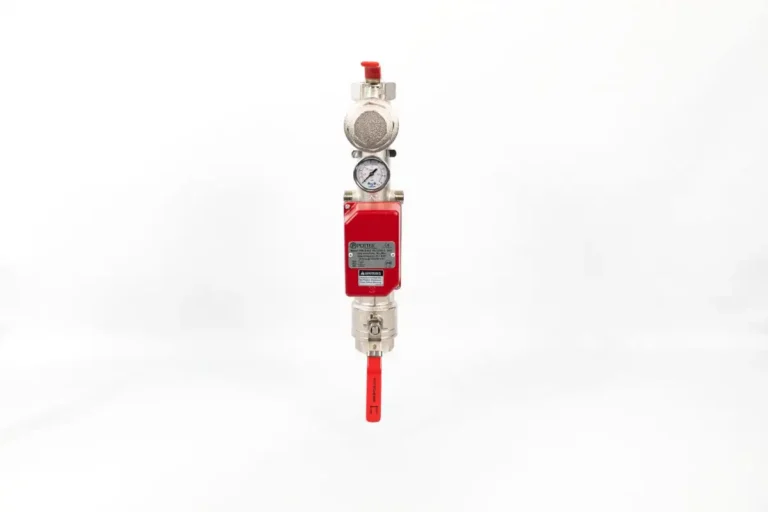

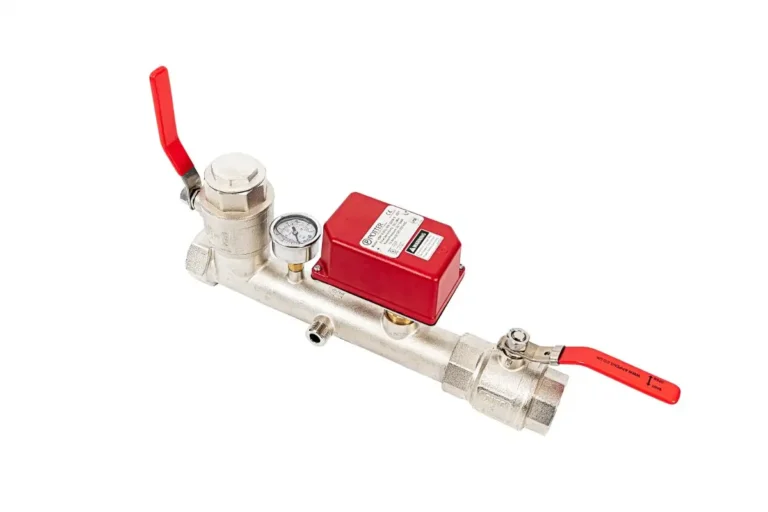

AE VS-A1 – 1 1/2″ & 2″ Fire Sprinkler Valve Set with Potter Flow Switch

Model: AE VS-A1 (1 1/2"& 2")

Applications Engineering Ltd have developed an innovative, compact and affordable fire sprinkler valve set that covers all the requirements of a modern domestic and residential property fire sprinkler system and offers the following benefits and features

Benefits and Design features
• 1” Top port allows a Potter flow switch to be mounted
• Potter VSR-S Series designed for metal pipe with adjustable time delay
• 100% pressure tested.
• Lockable inlet valve handle
• Full bore test valve
• Glycerine filled 16 bar pressure gauge
• No loss connector allows gauge to be removed without draining the system
• Easy access for servicing
• Less joints minimise risk of leaks

Available in 1 1/2″ (40mm) and 2″ (50mm) versions.

Download Product Technical Specification
