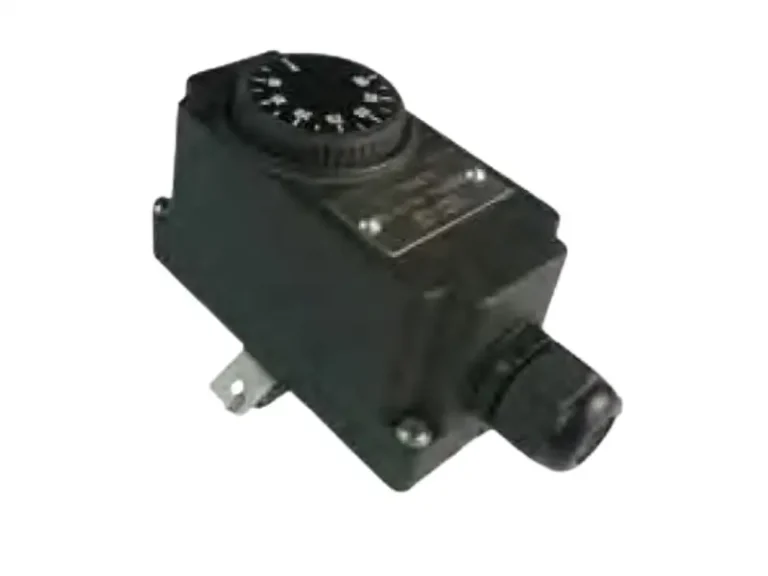

Y2H – Pipe Mount Thermostat

Housing: IP44, black PC-ABS, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.

Cable input: One M20 cable gland.

Set point adjustment: By °C printed knob . °F values available as an option.

Sensing element: Liquid filled bulb, located inside a backside mounted plate.

Adjustment ranges:  30-90°C (85-195°F) or 30-110°C (90-230°F)

Electrical connections: 3 screw terminal connection block

Mounting: by spring (Part number 9BCRE3000SPH006A – ordered separately)

Contact: Normally closed for heating applications.

‍Status Indicators: Red LED – Power

Green LED – Switch active

Electrical rating, resistive loads:

– Open on temperature rise contact (C-1)

16A 250V, 50 ~60Hz: >100.000 cycles,

‍Electrical rating, inductive loads:

– Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles

‍

Minimum storage temperature: -35°C (-30°F)

Maximum ambient temperature: 110°C (230°F)

‍
