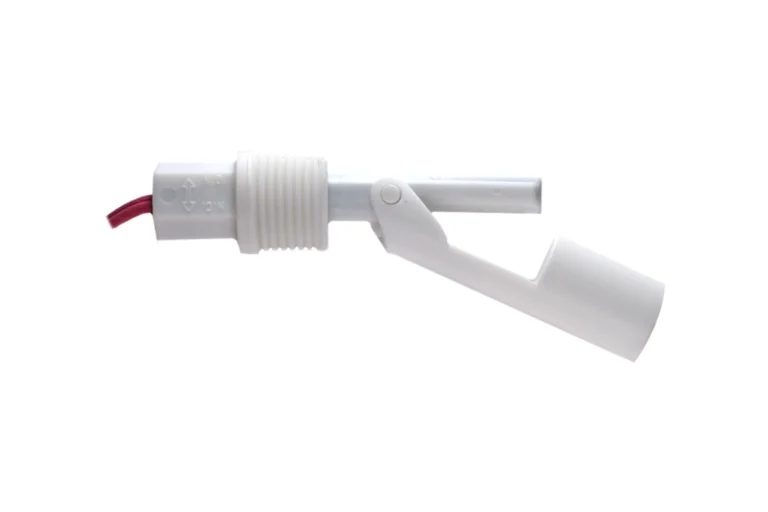

Level Switch – LS7 Type 5 Plastic Horizontally Mounted
This low-cost level switch is ideal for high volume use in small tanks and vessels. Engineered plastics construction offers broad compatibility in water, oils and chemicals.
Type 5 – Polypropylene, Nylon or Versaplast
- Nylon is Ideal for Oils and Fuels
- NSF-Approved Polypropylene is Ideal for Potable Water and Broad Chemicals
- Versaplast is Ideal for Corrosive Fluids
Principle
When the magnetic field of permanent magnet inside the float is moved into to the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.
Technical Spec
| Switch rating | 20 VA |
|---|---|
| Electrical contact | SPST |
| Wetted parts options | PP, Versaplast, Nylon |
| Electrical connection | 60 cm flying leads |
| Specific gravity | 0.8 Versaplast, 0.55 PP, 0.65 Nylon |
| Max pressure | 7 Bar |
