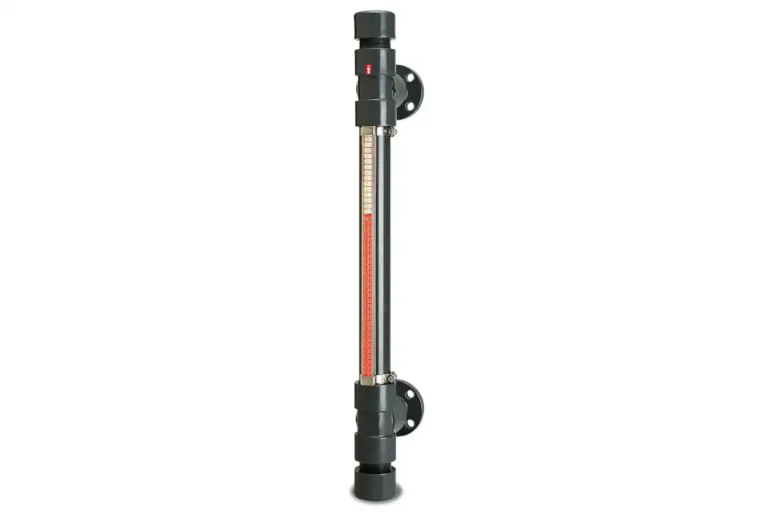

Bypass Level Indicator – SureSite – Engineered Plastics,Standard Size
The 2” (51 mm) Schedule 40 pipe design is ideal for use on chemical storage tanks, or with almost any liquid where temperature and pressure requirements are moderate. All SureSite® bypass level Indicators feature the same patented flag and guide assemblies used on our alloy versions, so you can be assured of excellent visibility and long-life reliability.
Accessory Options: Transmitters, Indicating Scales and Switch Modules
Technical Spec
| Materials | PVC |
|---|---|
| Clear PVC | |
| CPVC | |
| PVDF | |
| Max Pressure | 150 PSI (10.3 bar) |
| Max Temperature | 280°F (139°C) |
| Max Length | 19 Feet (5.8 Meters) |
