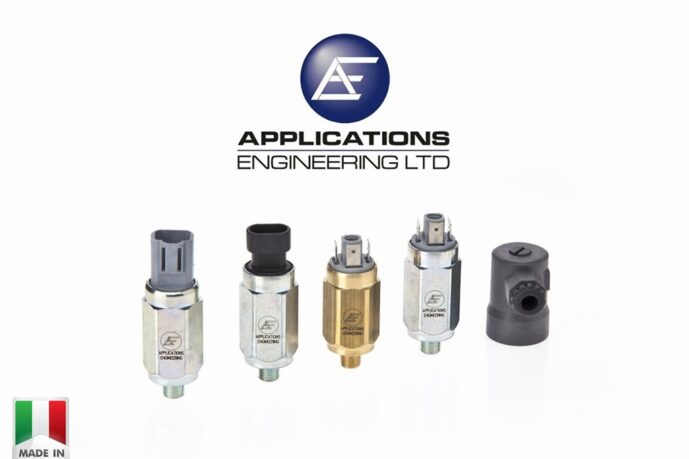

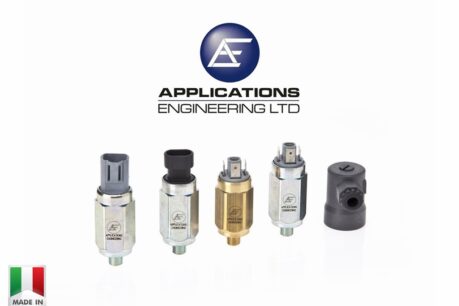

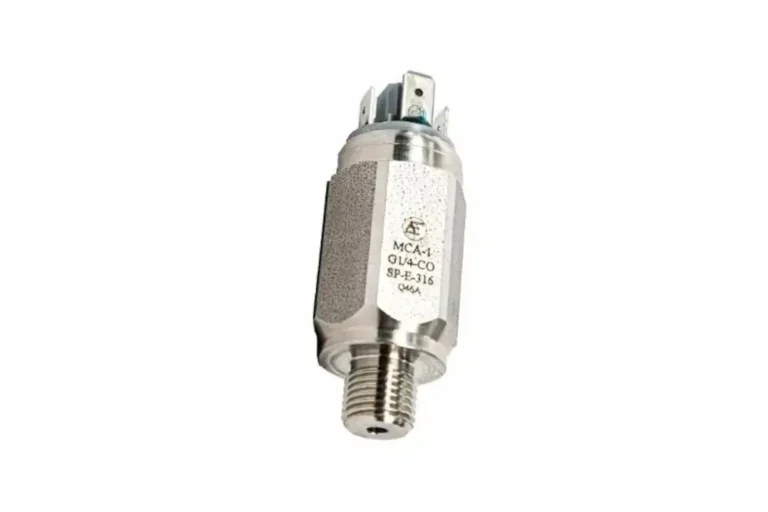

Vacuum Switch – VCA/VCS Range Adjustable with SPDT Contacts
The VCA/VCS vacuum switch range has been designed with affordability in mind, the switch features 0.5A rated SPDT contacts and a choice of brass, zinc plated steel and 316 stainless steel bodies with an adjustment range of 200~900 mbar. Electrical connection is made via 6.3 x 0.8 spade terminals and an optional IP54 plastic cover is also available.
These high quality SPDT vacuum switches are manufactured in Italy for Applications Engineering Ltd and list prices start at only£20.35 each, we can offer unbeatable pricing for OEM’s and volume customers so please give us a call to discuss your requirements.
|SWITCH RATING||250V @ 0.5A|
|SWITCH TYPE||Single pole double throw|
|DIAPHRAGM/PISTON MATERIAL||Nitrile, EPDM or Viton as standard (other options available on request)|
|BODY MATERIAL||Brass, Zinc plated steel or 316 S/S|
- Variety of body and diaphragm materials to choose from.
- Low cost.
- Italian made reliability.
- 200~900mbar adjustment range.
- Chemical and pharmaceutical.
- Food industry.
- Pneumatics and hydraulics.
